Oil Intake Control Valve - Installation





INSTALLATION

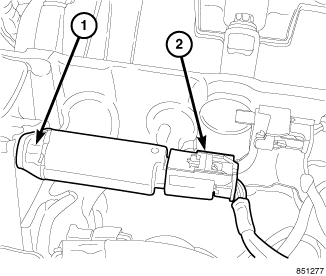

1. Install oil control valve.
2. Tighten oil control valve fastener (1).
3. Connect oil control valve electrical connector (2).
4. Install intake manifold Intake Manifold - Removal.
