Input Speed Sensor (RFE) (Injector) 2 Way

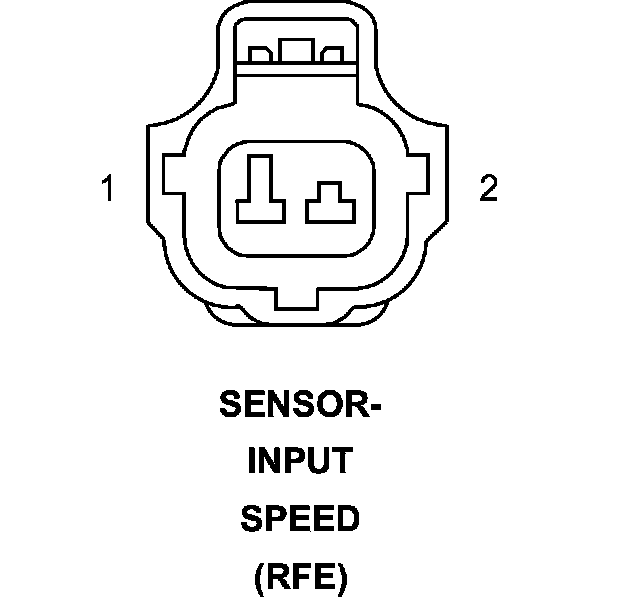

Connector (RFE) - (INJECTOR) 2 WAY

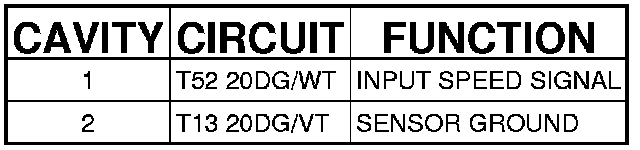

SENSOR-INPUT SPEED (RFE) - (INJECTOR) 2 WAY
