A/C-Heater Control C2 (MTC) (HVAC) 12 Way
A/C-Heater Control C2 (MTC) (HVAC) 12 Way

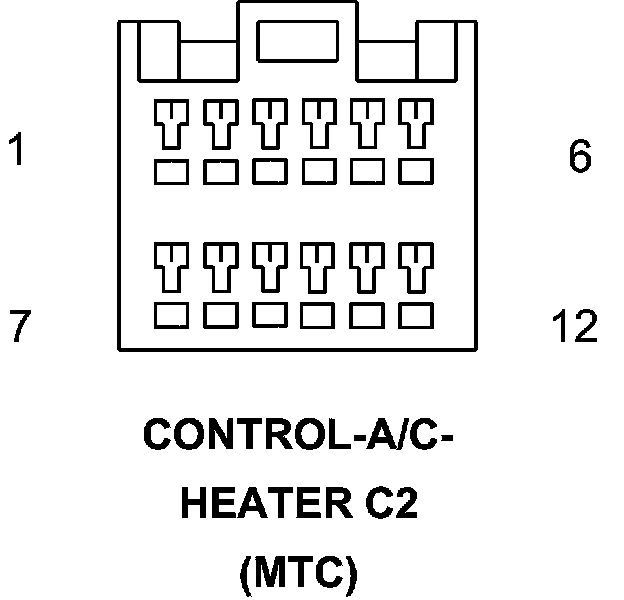

Connector C2 (MTC) - (HVAC) 12 WAY

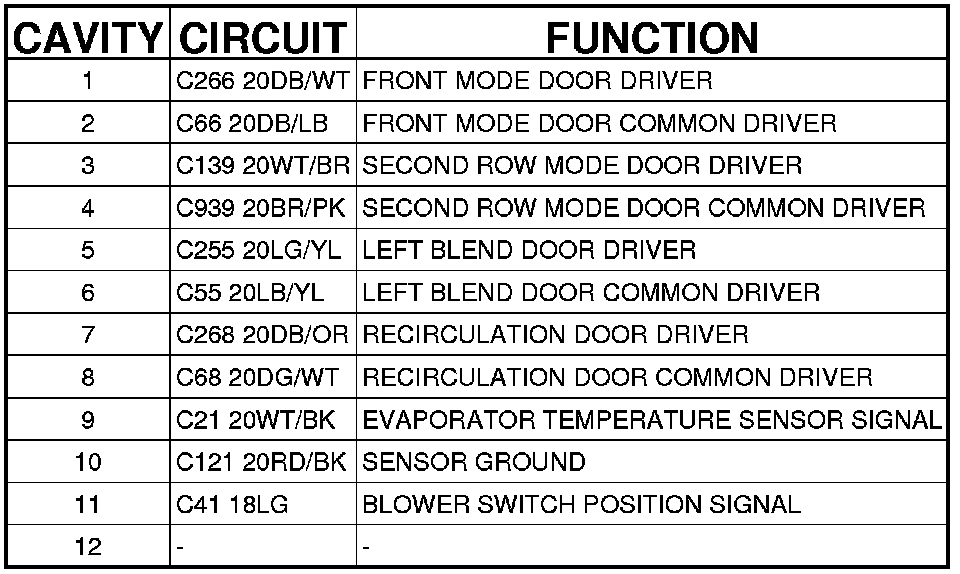

CONTROL-A/C-HEATER (MTC) - (HVAC) 12 WAY
