A/C-Heater Control C1 (MTC) (HVAC) 16 Way
A/C-Heater Control C1 (MTC) (HVAC) 16 Way

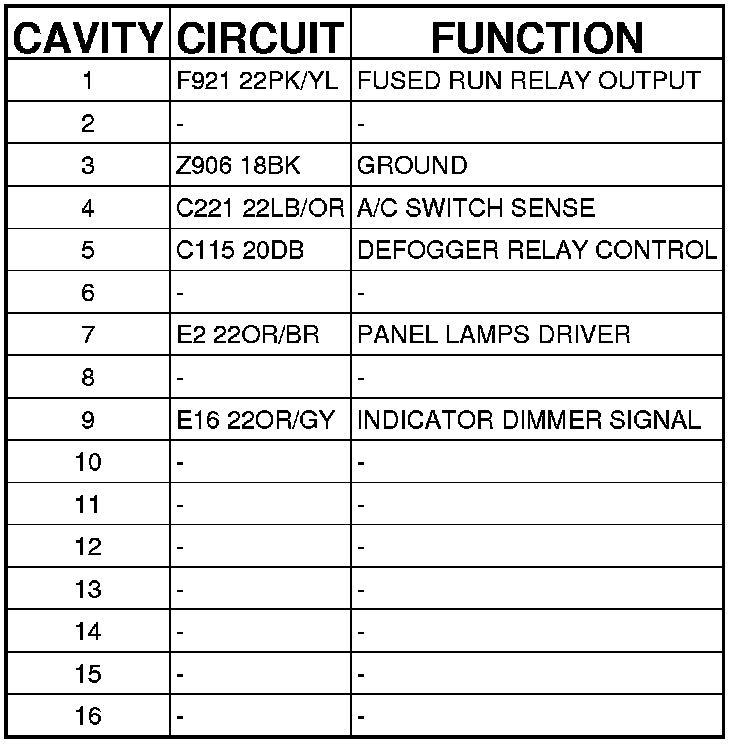

Connector C1 (MTC) - (HVAC) 16 WAY

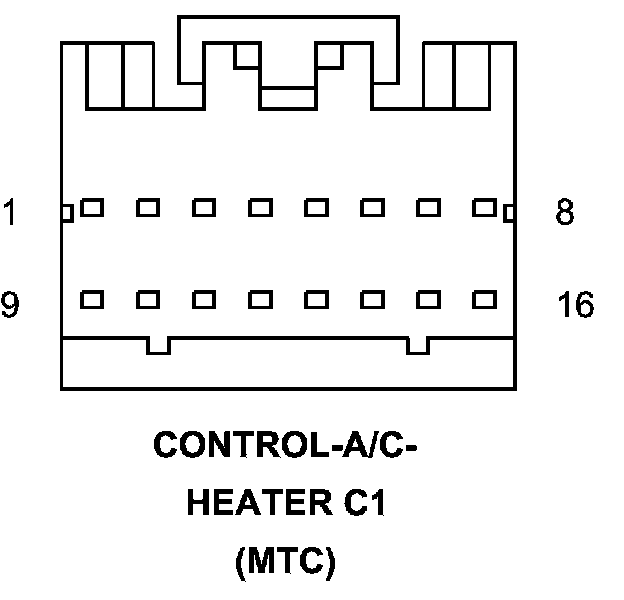

CONTROL-A/C-HEATER (MTC) - (HVAC) 16 WAY
