Home >> Jeep >> 2009 >> Commander 2WD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

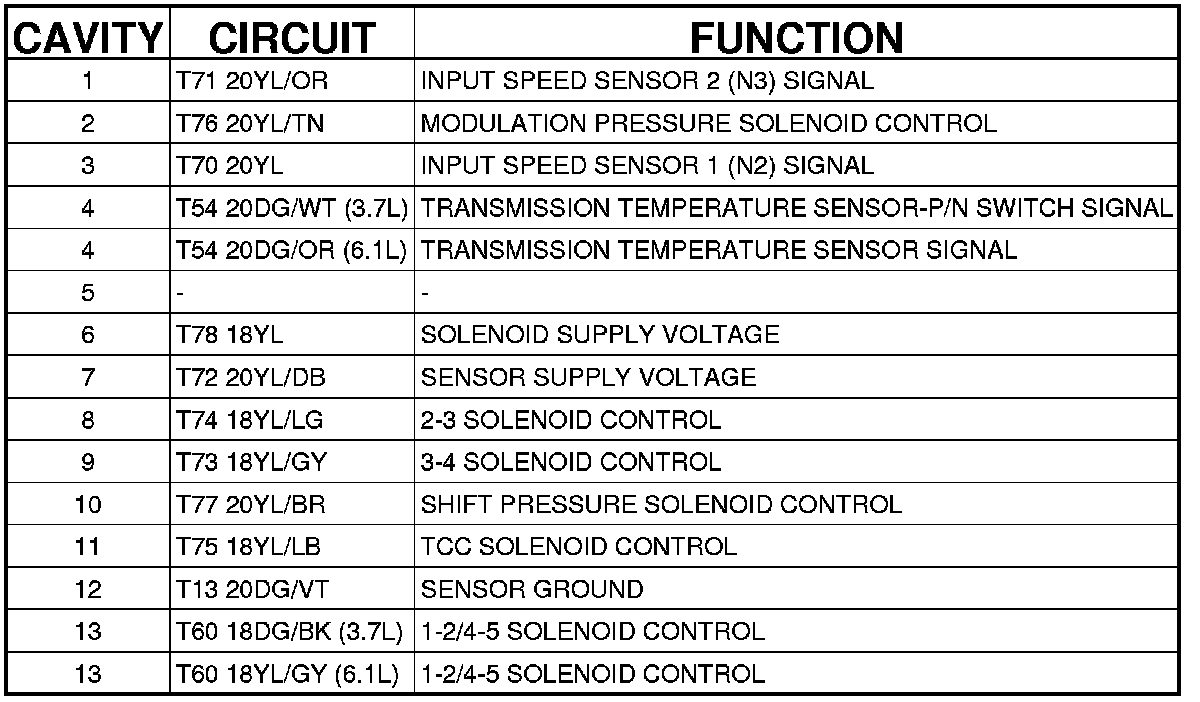

Connector (NAG1) - (INJECTOR) 13 WAY




ASSEMBLY-ELECTROHYDRAULIC CONTROL UNIT (NAG1) - (INJECTOR) 13 WAY
