Installation

INSTALLATION

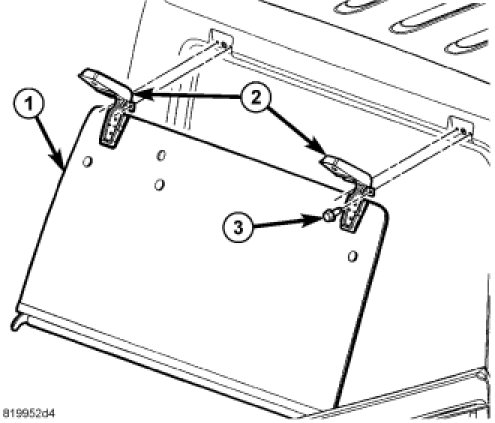

1. Position the backlite glass onto the hard top and install the bolts (3).
2. Tighten the bolts to 10 Nm (90 in. lbs.).
3. Position the trim covers (2) back onto the hinges and seat fully.

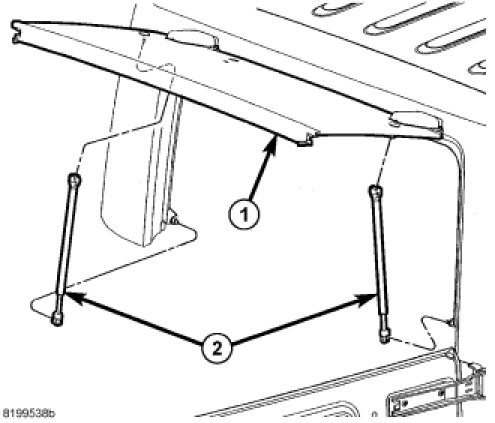

4. Install the glass support cylinders (2), Installation.

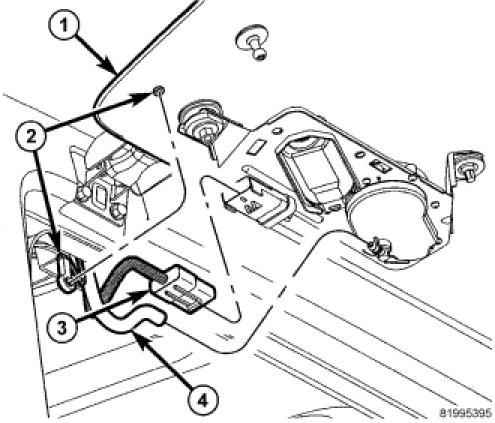

5. Connect the heated glass electrical connector (2).
6. Connect the rear wiper motor electrical connector (3).
7. Connect the washer hose (4).
