EGR Control Solenoid: Locations



EGR Valve

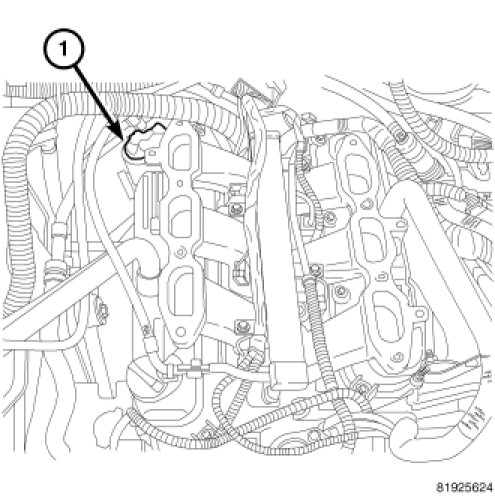

The EGR valve and solenoid assembly (1) is attached to the rear of the right cylinder head.
