Firing Order: Specifications

3.0L COMMON RAIL DIESEL ENGINE


The 3.0L (183 C.I.D.) six - cylinder "common rail" direct injection engine is a 72°, overhead valve design. The engine utilize a cast aluminum cylinder block molded around cast iron piston sleeves. The engine has aluminum cross flow cylinder heads, four valves per cylinder, central injectors and dual overhead camshafts. The 3.0L is turbocharged, intercooled, and also equipped with a EGR cooler.

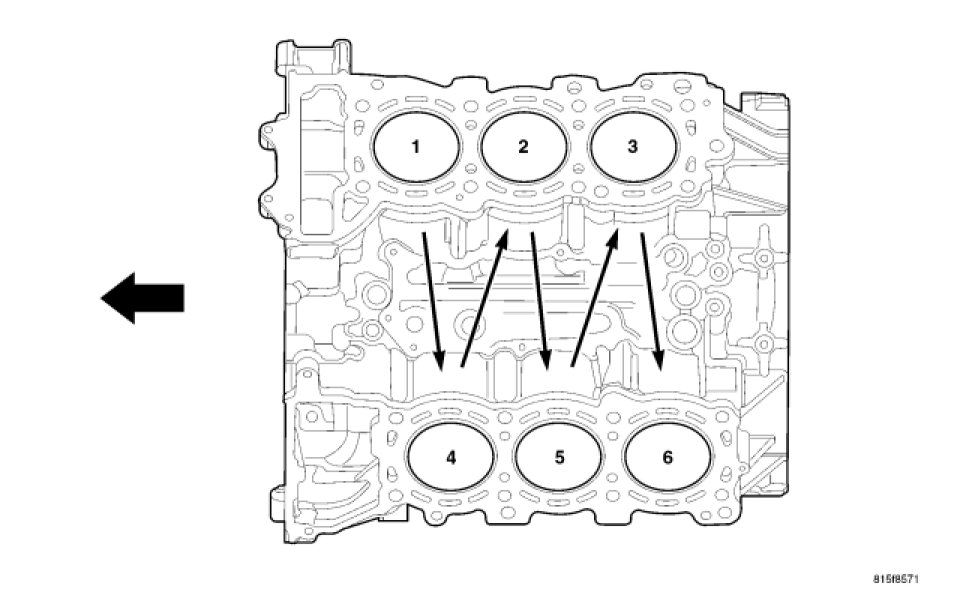

Cylinders are numbered front to back, beginning with the right bank. The right bank cylinders are numbered 1, 2, 3. The left bank cylinders 4, 5, 6 The injection order of the engine is 1-4-2-5-3-6.
