Turbo Boost Sensor

Component ID: 465

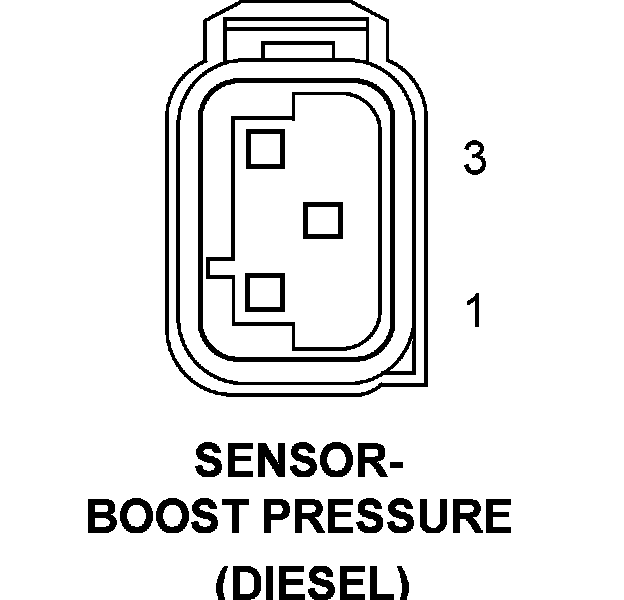

Component : SENSOR-BOOST PRESSURE

Connector:
Name : SENSOR-BOOST PRESSURE
Color :
# of pins : 3
Qualifier : (DIESEL)




Pin Circuit Description
1 K656 20BR/GY BOOST PRESSURE SENSOR GROUND
2 K37 20GY/YL BOOST PRESSURE SENSOR SIGNAL
3 K356 20RD/BK BOOST PRESSURE SENSOR 5 VOLT SUPPLY

Component Location - 30
