Relay-Radiator Fan Low

Component ID: 276

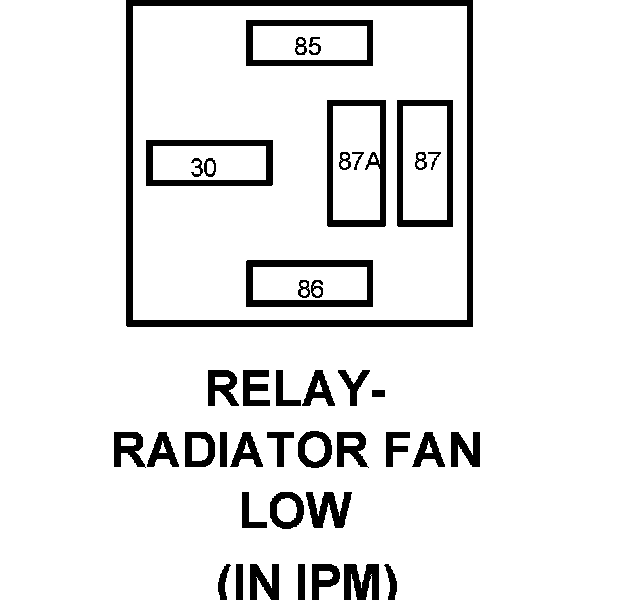

Component : RELAY-RADIATOR FAN LOW

Connector:
Name : RELAY-RADIATOR FAN LOW
Color :
# of pins : 0




30 INTERNAL FUSED B(+)
85 INTERNAL LOW SPEED RADIATOR FAN RELAY CONTROL
86 INTERNAL FUSED B(+)
87 N24 10DG/DB LOW SPEED RADIATOR FAN RELAY OUTPUT
87A - -
