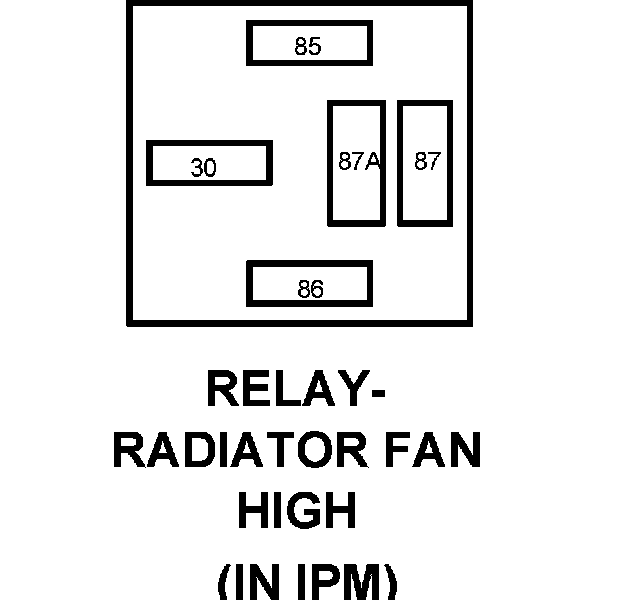

Relay-Radiator Fan High

Component ID: 275
Component : RELAY-RADIATOR FAN HIGH

Connector:
Name : RELAY-RADIATOR FAN HIGH
Color :
# of pins : 0




30 INTERNAL FUSED B(+)
85 INTERNAL RADIATOR FAN HIGH RELAY CONTROL
86 INTERNAL FUSED B(+)
87 N23 10DB/DG HIGH SPEED RADIATOR FAN RELAY OUTPUT
87A - -
