Exhaust Manifold

Exhaust Manifold

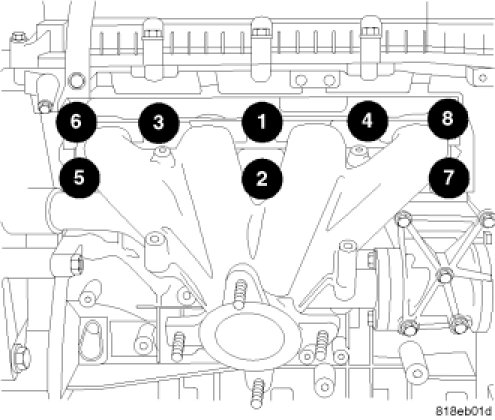

Tighten the exhaust manifold bolts to 34 Nm (25 ft. lbs.) in the sequence shown.
