Installation

INSTALLATION





1. If re-using the oil temperature sensor, coat the threads with Mopar(R) thread sealant.

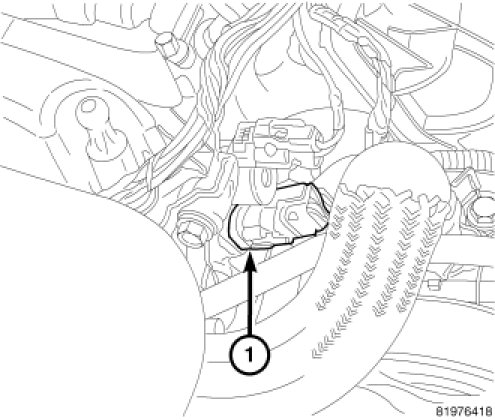

2. Install oil temperature sensor (1). Tighten to 18 Nm (160 in. lbs.).
3. Connect electrical connector.
