Lamp-Courtesy-Lower Right

Component ID: 175

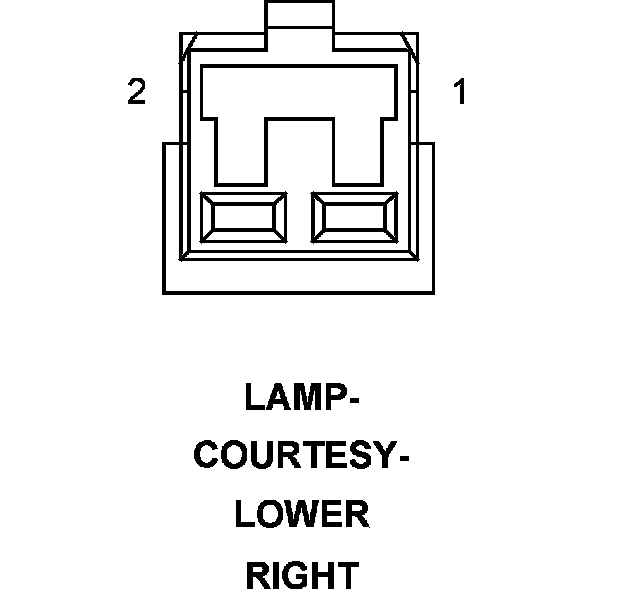

Component : LAMP-COURTESY-LOWER RIGHT

Connector:
Name : LAMP-COURTESY-LOWER RIGHT
Color :
# of pins : 2




Pin Circuit Description
1 A931 20RD/WT FUSED B(+)
2 M22 20YL/OR COURTESY LAMPS DRIVER

Component Location - 42
