Home >> Jeep >> 2008 >> Commander 2WD V8-4.7L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Switch >> Service and Repair >> Removal

Removal







REMOVAL





1. Disconnect and isolate the battery negative cable.

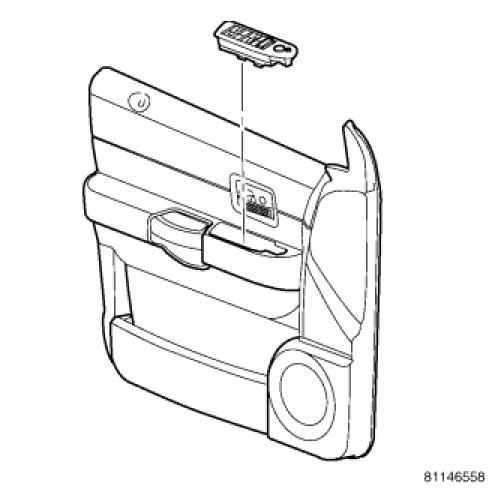

2. Using a trim stick, start at the rear of the switch and pry up to remove from door trim panel.
3. Disconnect electrical harness connectors from switch.
