Installation

INSTALLATION

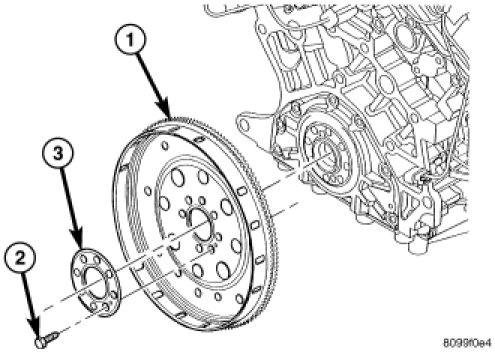

1. Position flex plate (1) with backing plate on the crankshaft.
2. Apply Mopar(R) Lock & Seal Adhesive to the flex plate bolts.
3. Install flex plate bolts. Tighten bolts to 95 Nm (70 ft. lbs.).
4. Install the transmission.
