Installation

INSTALLATION

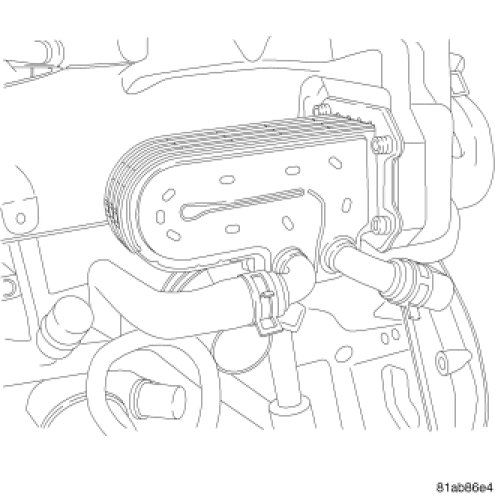

1. Position new gasket and EGR Cooler.

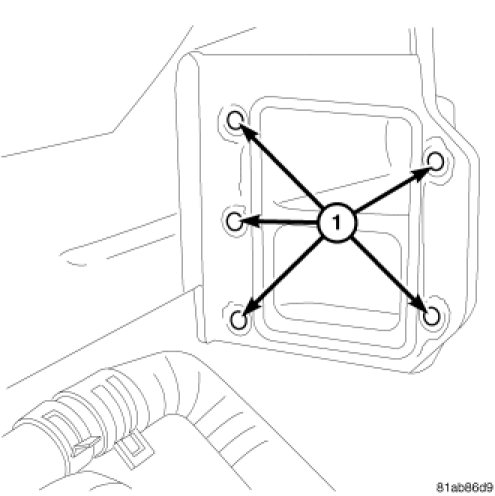

2. Install five mounting bolts. Tighten bolts to 10 Nm (89 in lbs.).

3. Install cooler hoses.
4. Fill cooling system.
