Installation

INSTALLATION

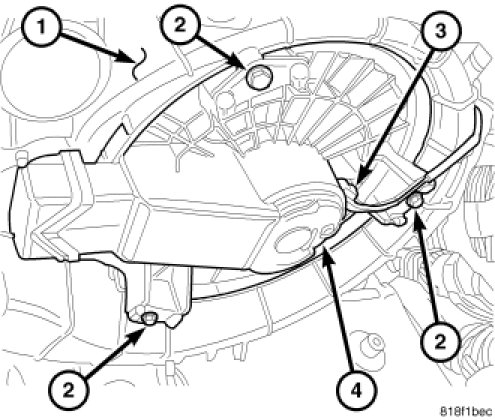

NOTE: LHD model shown. RHD model similar.

1. Position the blower motor (4) into the bottom of the HVAC housing (1).

2. Install the three screws (2) that secure the blower motor to the HVAC housing. Tighten the screws to 1.2 Nm (10 in. lbs.).

3. Connect the instrument panel wire harness connector (3) to the blower motor.

4. Reconnect the negative battery cable.
