Installation

INSTALLATION





NOTE: LHD model shown. RHD model similar.

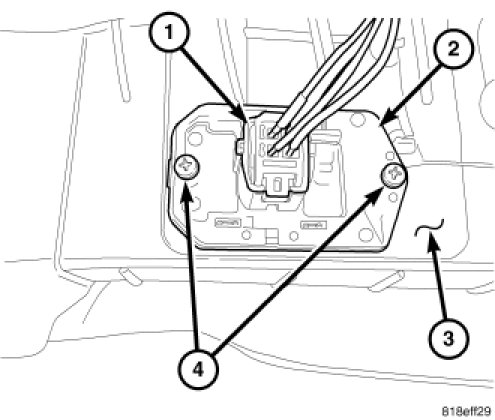

1. Position the blower motor resistor (2) onto the rear of the HVAC housing (3) through the glove box opening.

2. Install the two screws (4) that secure the blower motor resistor to the HVAC housing. Tighten the screws to 1.2 Nm (10 in. lbs.).

3. Connect the wire harness connector (1) to the blower motor resistor.

4. Install the glove box.

5. Reconnect the negative battery cable.
