Shifter A/T

Component ID: 14

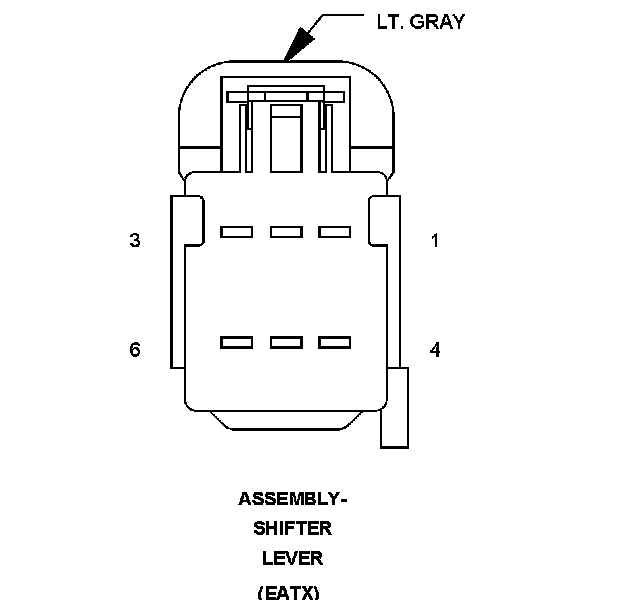

Component : ASSEMBLY-SHIFTER LEVER

Connector:
Name : ASSEMBLY-SHIFTER LEVER
Color : LT. GRAY
# of pins : 6
Qualifier : (EATX)




Pin Description Circuit
1 PANEL LAMPS DRIVER E12 20OR/GY
2 GROUND Z910 20BK/WT
3 TOW/HAUL OD OFF SIGNAL T6 20DG
4 GROUND Z910 18BK/WT
5 BTSI UNLOCK SIGNAL K321 20BR/YL
6 GROUND Z910 18BK/WT

Component Location - 16
