System Diagram

Component ID: 114
Component : HORN

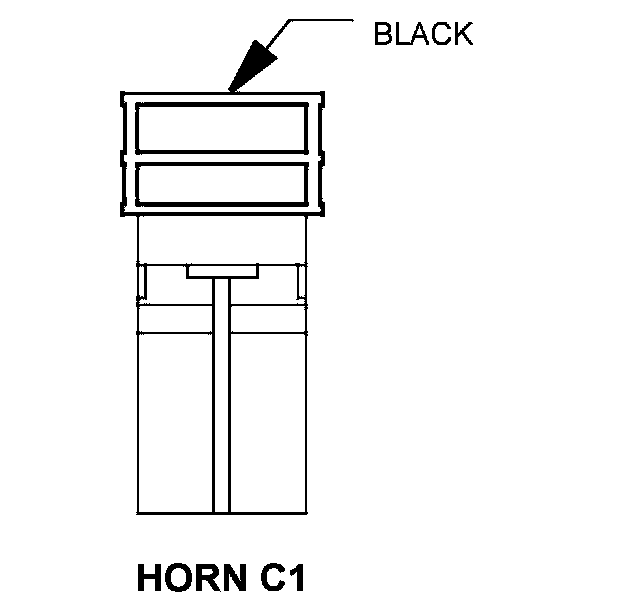

Connector:
Name : HORN C1
Color : BLACK
# of pins : 1




Pin Description Circuit
1 FUSED HORN CONTROL OUTPUT X21 20GY/YL

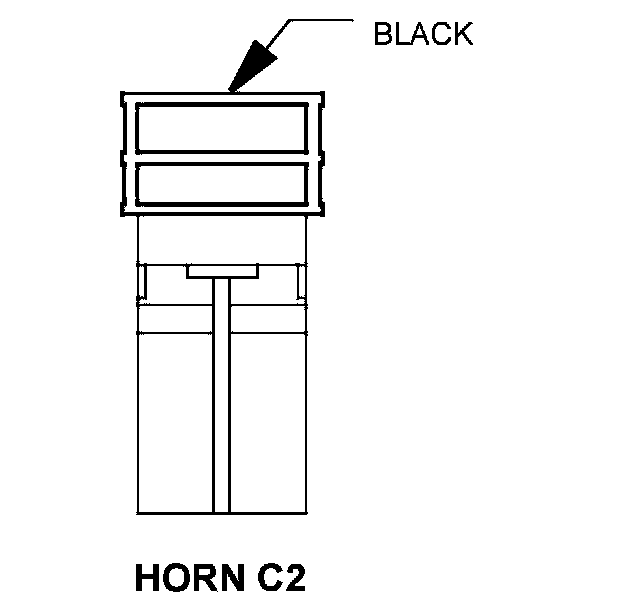

Connector:
Name : HORN C2
Color : BLACK
# of pins : 1




Pin Description Circuit
1 GROUND Z904 18BK
