Backup Lamp Switch

Component ID: 343

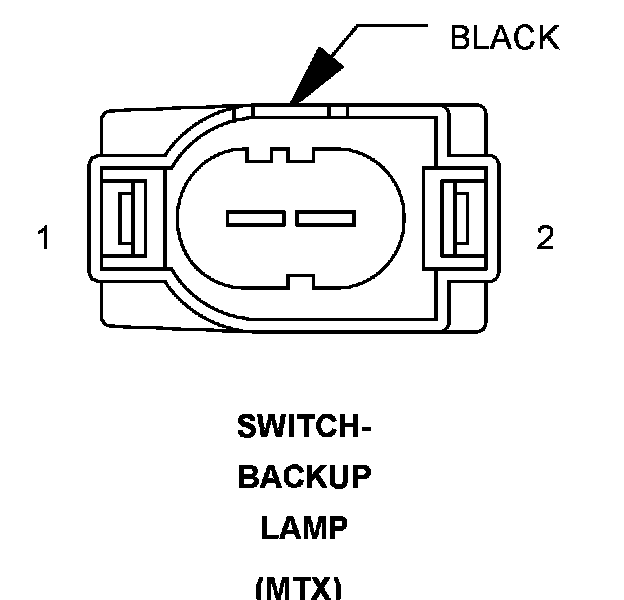

Component : SWITCH-BACKUP LAMP

Connector:
Name : SWITCH-BACKUP LAMP
Color : BLACK
# of pins : 2
Qualifier : (MTX)




Pin Description Circuit
1 GROUND Z906 18BK
2 BACKUP LAMP SWITCH SIGNAL T2 18DG/WT
