Installation

INSTALLATION

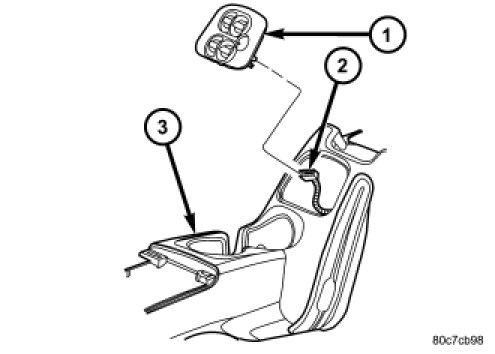

FRONT




1. Connect electrical harness connector (2) to switch (1).

2. Install switch to shifter bezel. Install and tighten mounting fasteners.

3. Install shifter bezel.

4. Connect battery negative cable.

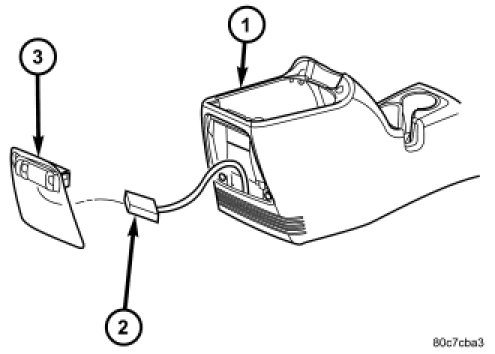

REAR




1. Connect electrical harness connector (2) to switch (3).

2. Install switch into opening in console (1) and press into place.

3. Connect battery negative cable.
