Installation






INSTALLATION

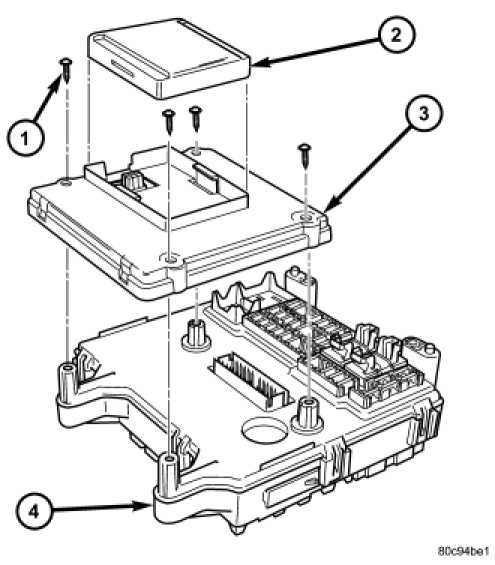

1. Install Remote Keyless Entry module (2) to Body Control Module (3).

2. Install Junction Block (JB) (4).

3. Connect the battery negative cable.
