Sensor-Wheel Speed-ABS-Left Front

Component ID: 430
Component : SENSOR-WHEEL SPEED-ABS-LEFT FRONT

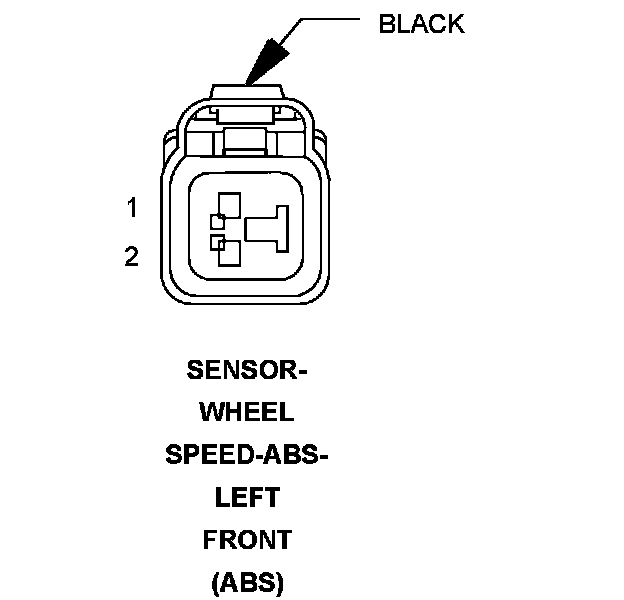

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color : BLACK
# of pins : 2
Qualifier : (ABS)




Pin Description Circuit
1 LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY B9 18DG/LG
2 LEFT FRONT WHEEL SPEED SENSOR SIGNAL B8 18DG/WT

Component Location - 28

Fig. 28:
