Motor-Power Window-Driver

Component ID: 187
Component : MOTOR-POWER WINDOW-DRIVER

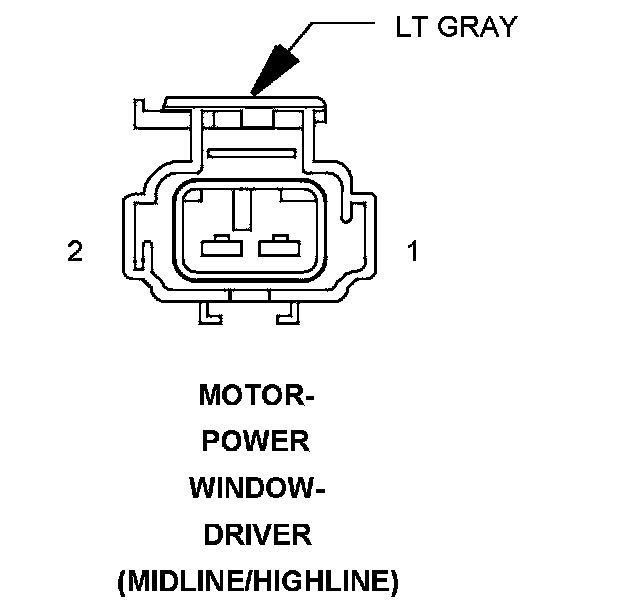

Connector:
Name : MOTOR-POWER WINDOW-DRIVER
Color : LT GRAY
# of pins : 2
Qualifier : (MIDLINE/HIGHLINE)




Pin Description Circuit
1 LEFT FRONT WINDOW DRIVER DOWN Q21 14OR/WT
2 LEFT FRONT WINDOW DRIVER UP Q11 14OR/LG

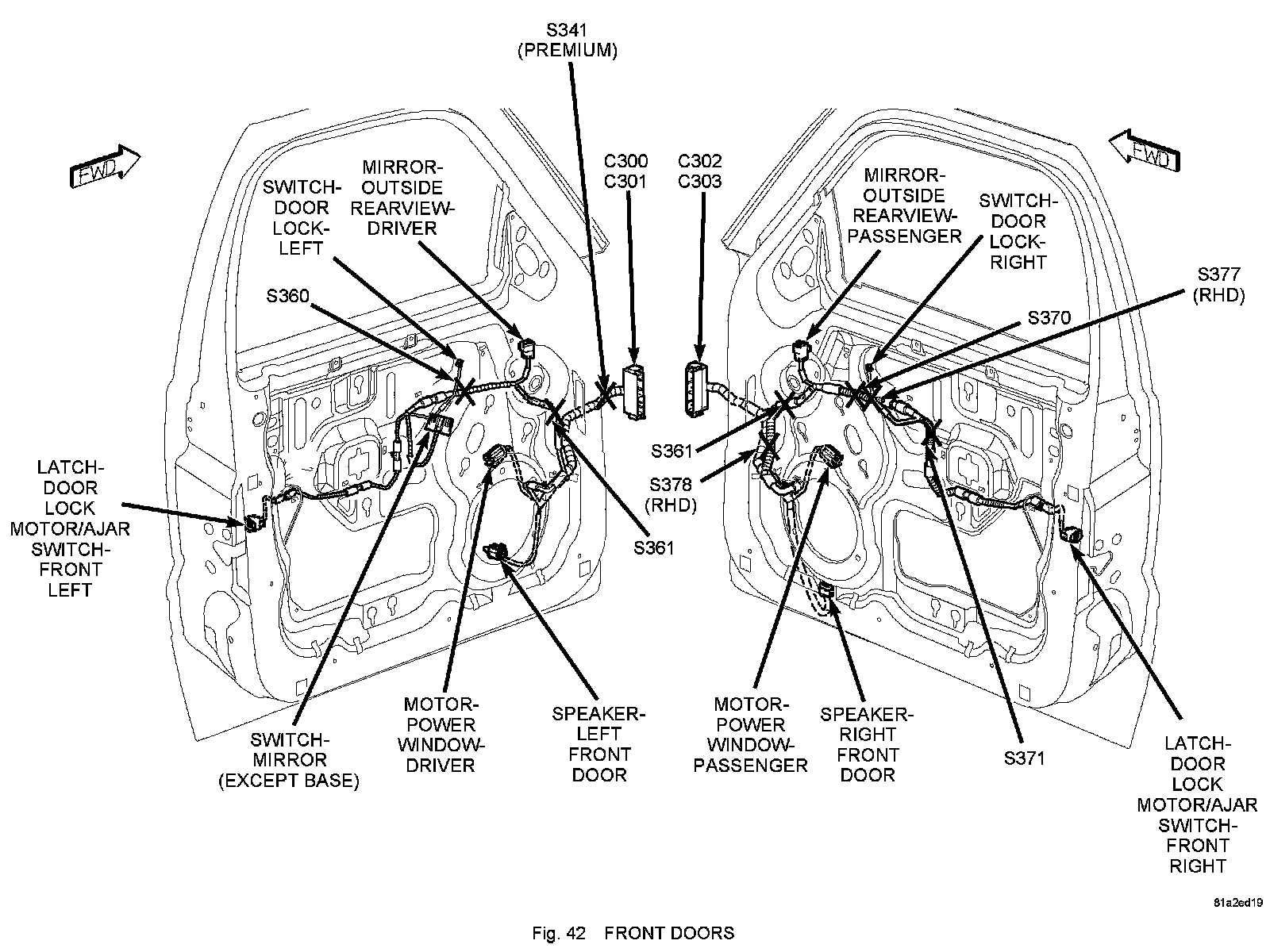

Component Location - 42

Fig. 42:
