LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
2007
>>
Liberty 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

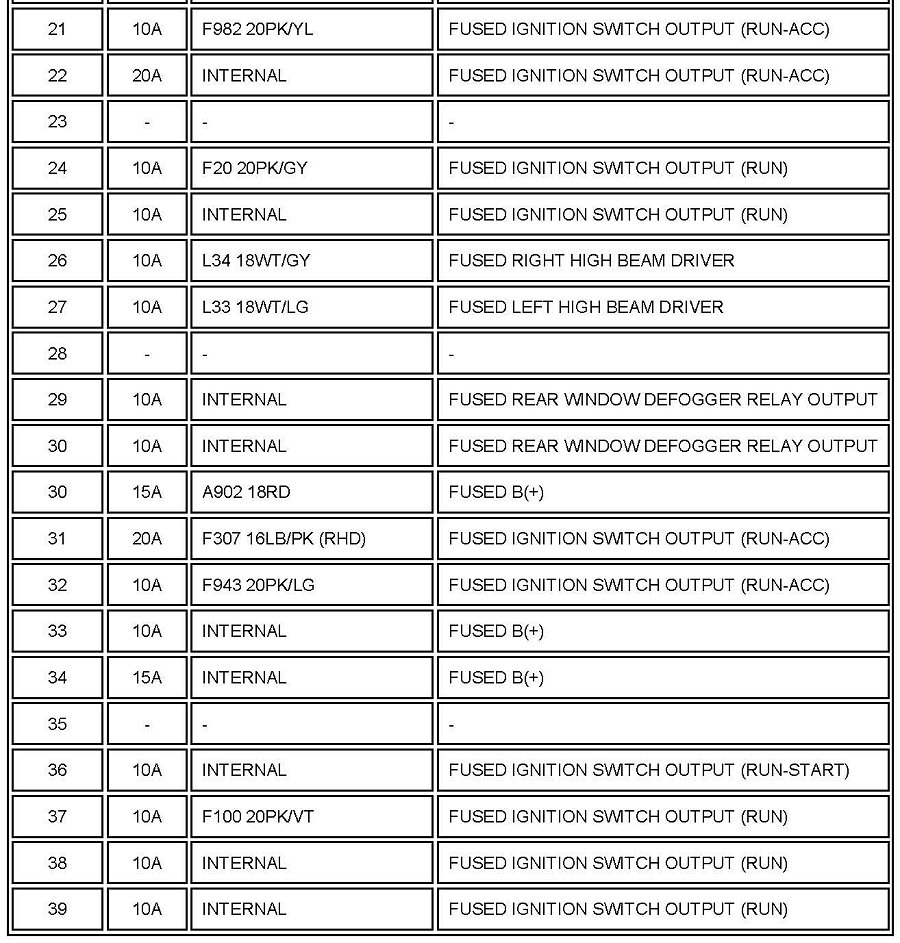

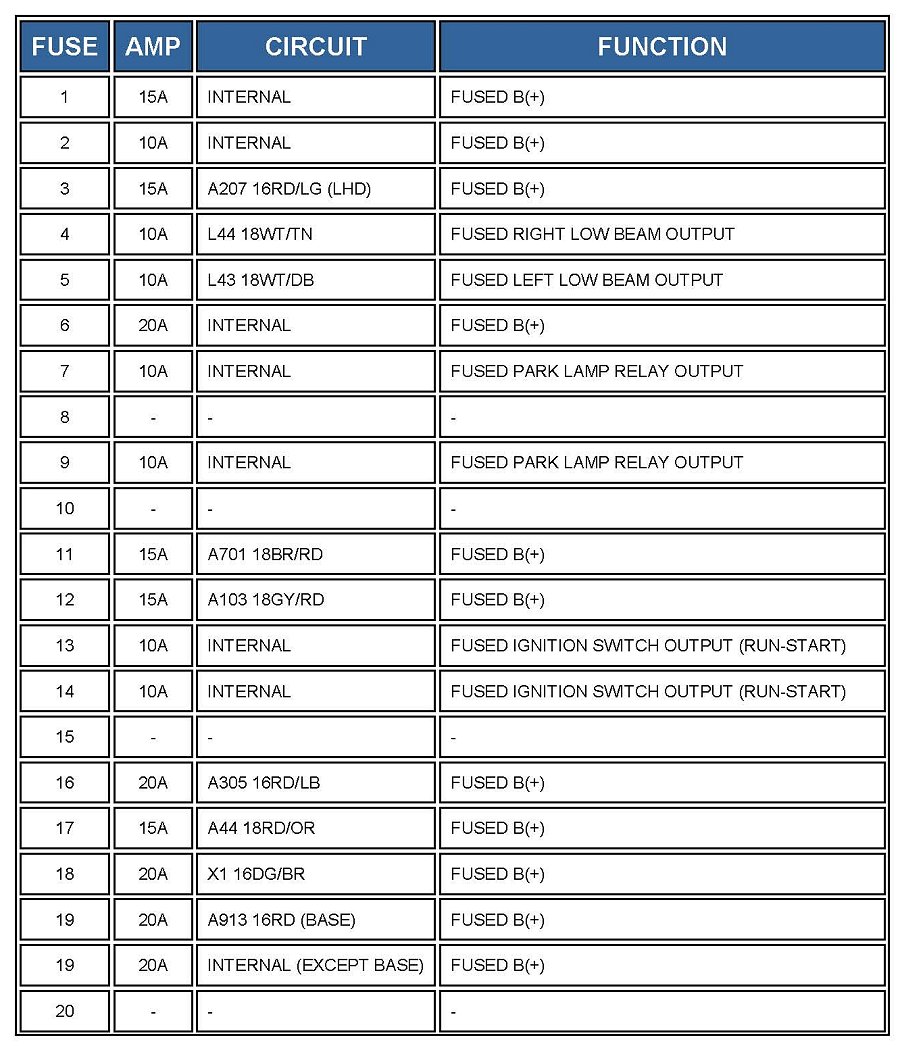

Fuse Block
>>

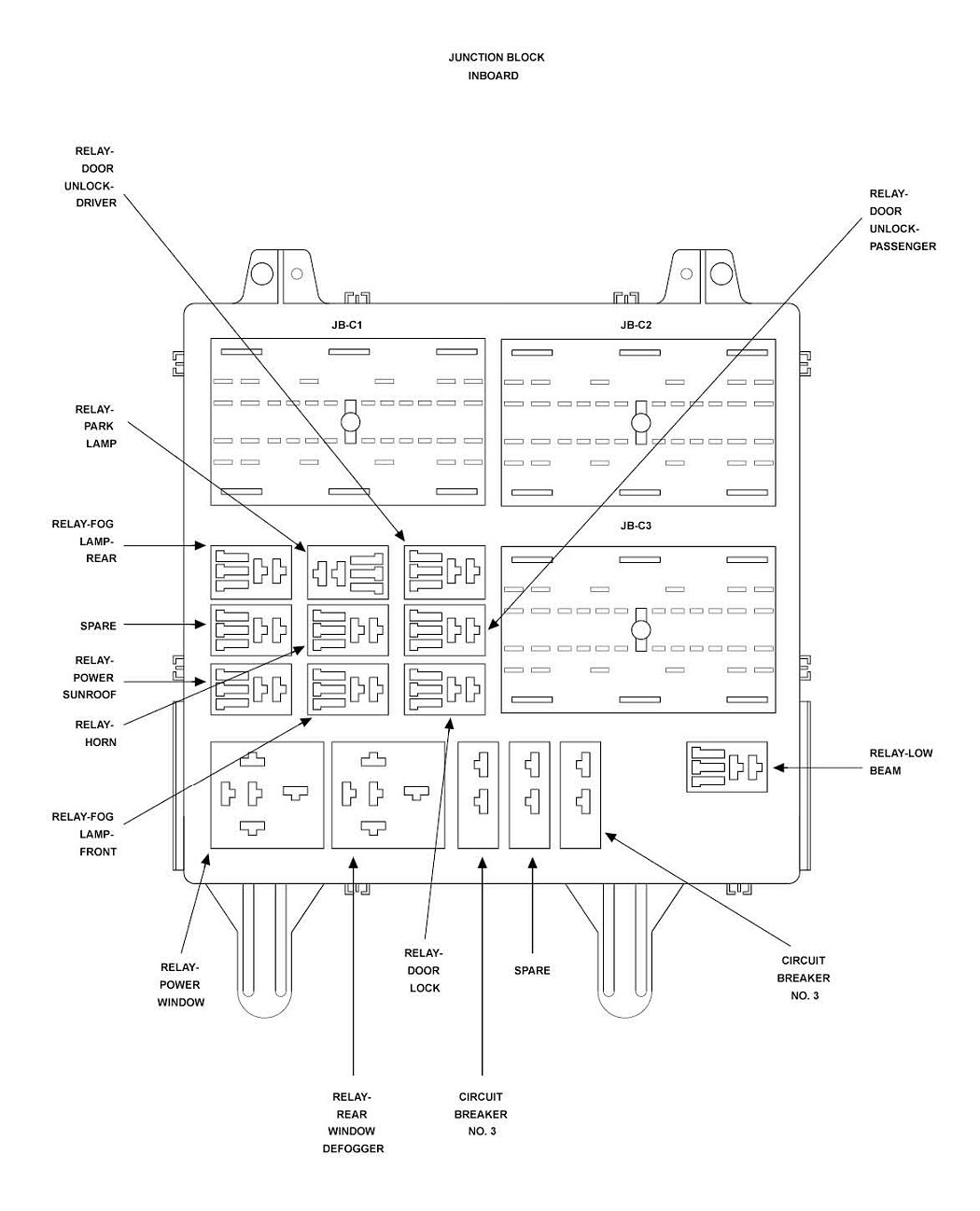

Junction Block

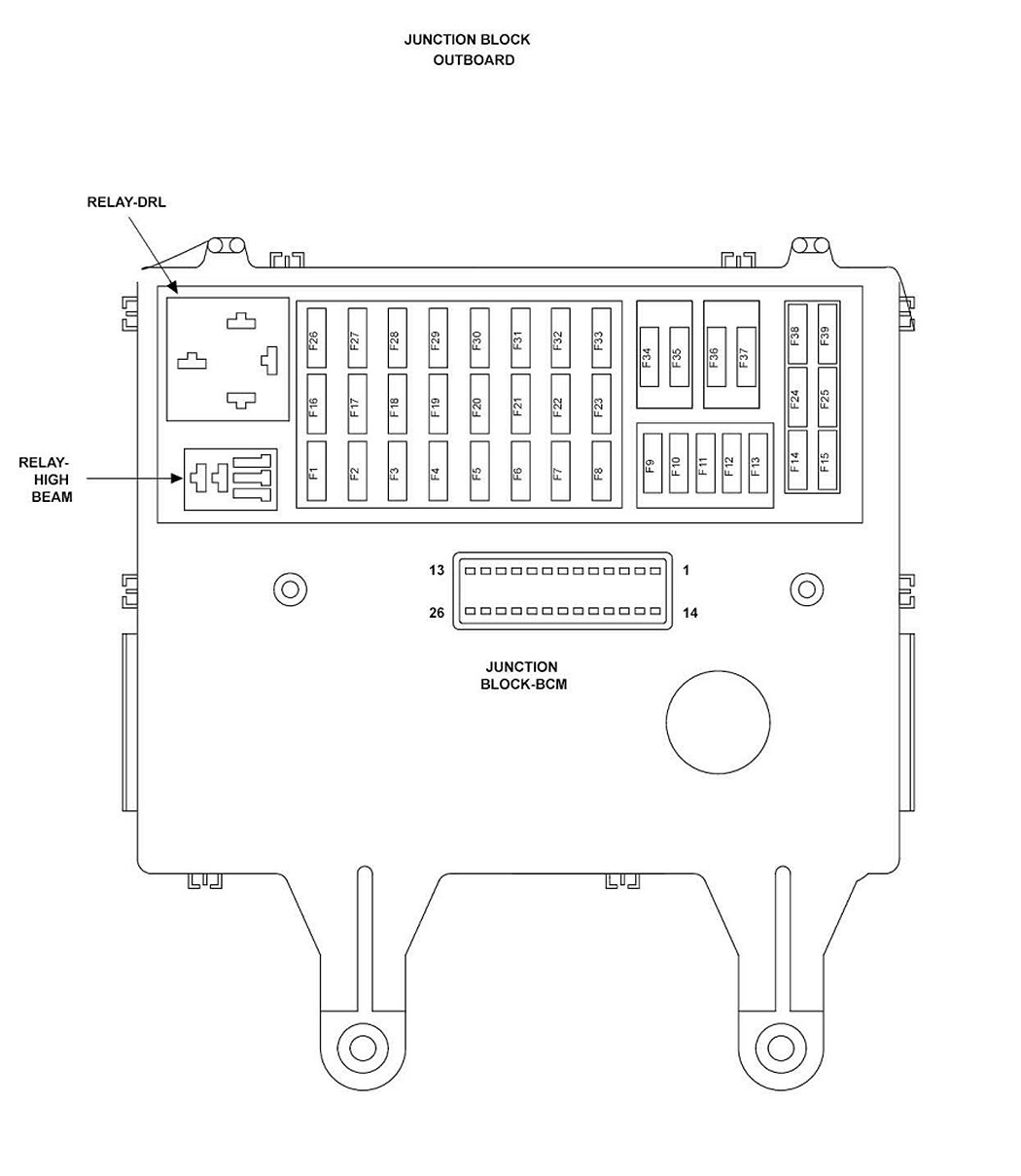

Junction Block
Junction Block
