Installation

INSTALLATION

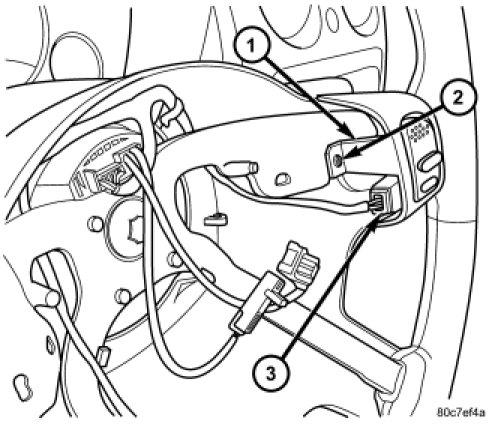

1. Position switch to steering wheel.

2. Install switch mounting screw (2) and tighten to 1.5 Nm (14 in. lbs.).

3. Plug electrical connector into switch.

4. Install airbag module.

5. Connect negative battery cable to battery.
