Installation

INSTALLATION

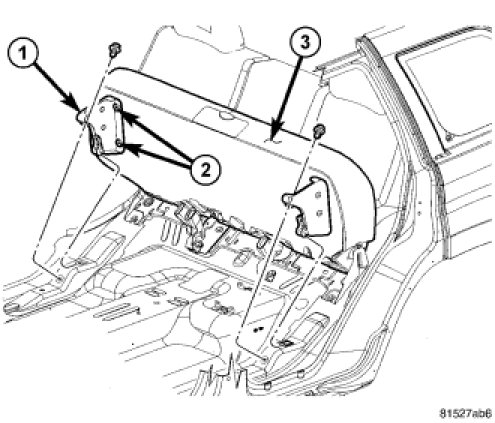

1. Align the riser (1) onto the seat cushion (3) and install the two mounting bolts (2). Tighten bolts to 45 Nm (33 ft. lbs.).

2. Install the seat cushion.
