EGR Control Solenoid: Locations

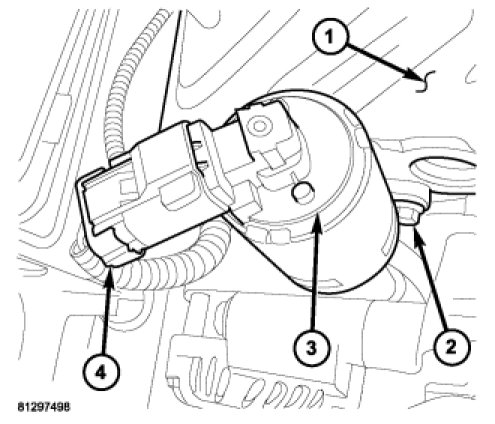

The electronic EGR valve and solenoid assembly (3) is attached to the front of the right cylinder head (1).
