Installation






INSTALLATION

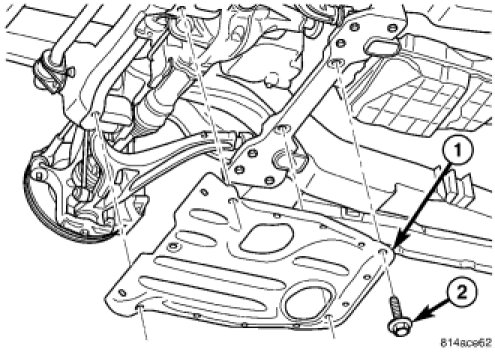

1. Install the skid plate (1) and install the four bolts (2).

2. Tighten the bolts to 28 Nm (21 ft. lbs.).
