Ambient Temperature Sensor / Switch HVAC

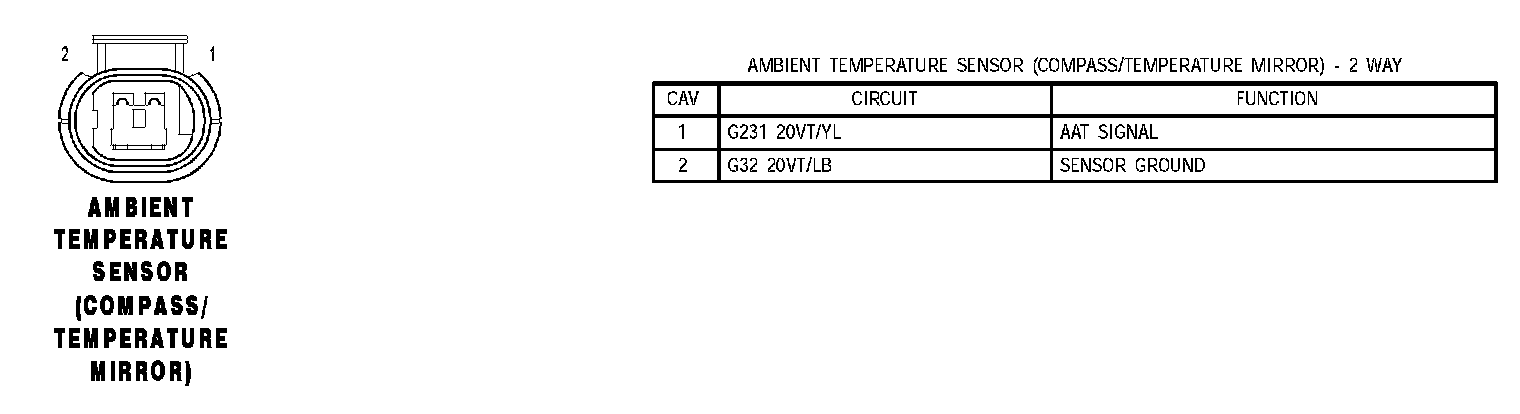

Ambient Temperature Sensor (Compass/Temperature Mirror):

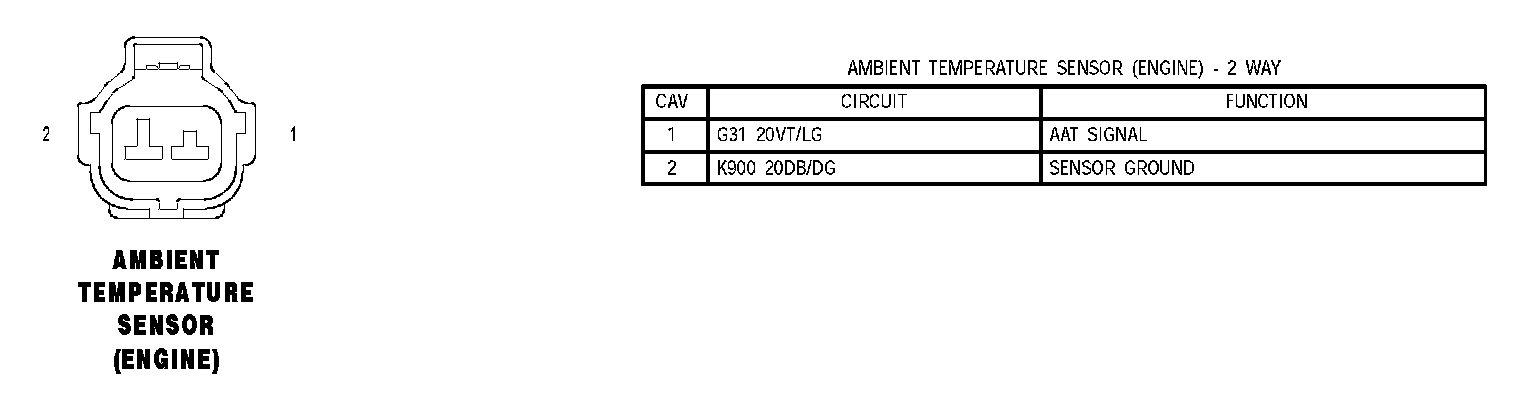

Ambient Temperature Sensor (Engine):
