Home >> Jeep >> 2006 >> TJ (CANADA) L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch >> Locations

Compressor Clutch: Locations

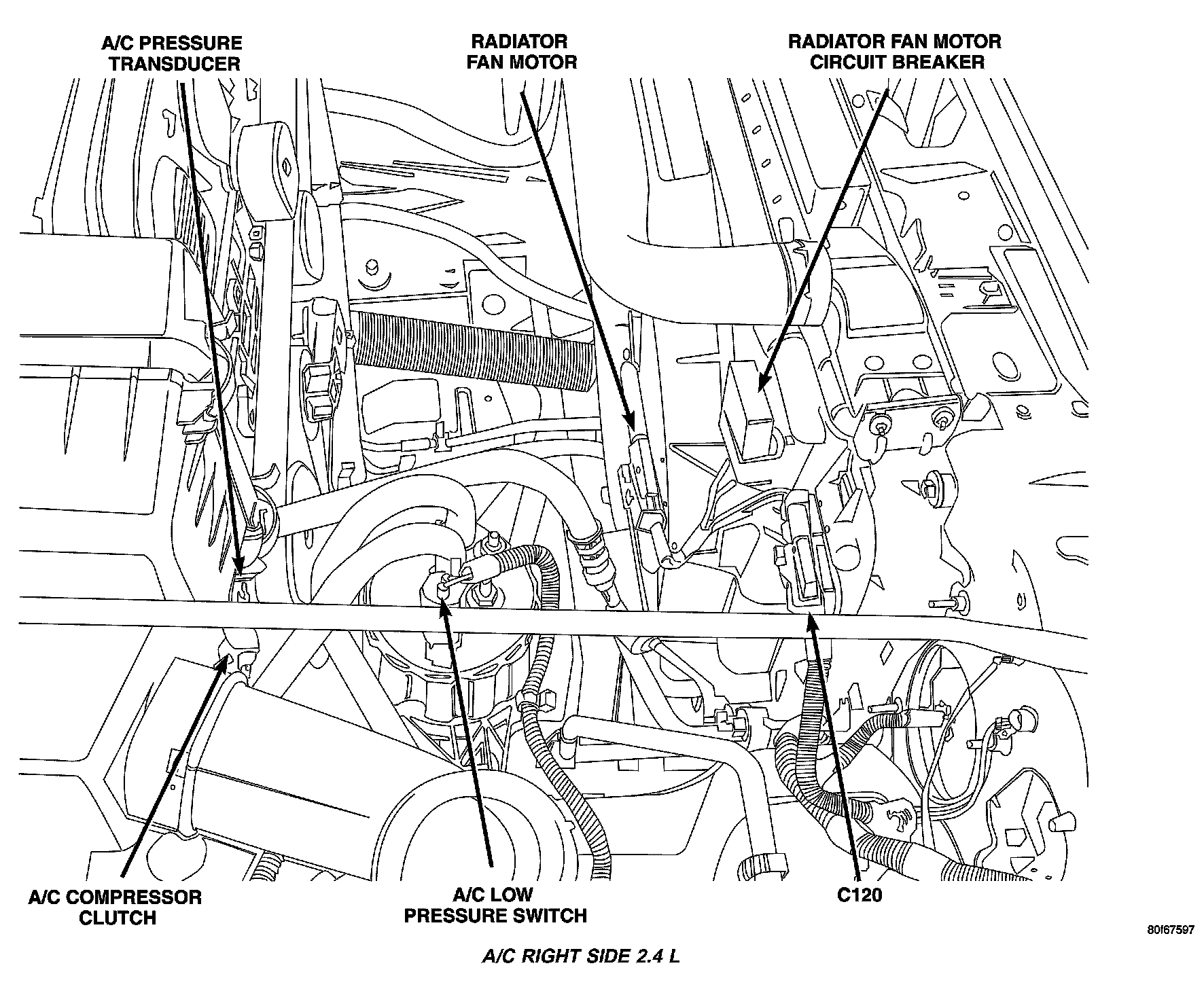

A/C Right Side 2.4L:
