Front

WINDOW SWITCH

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the shift bezel.
3. Remove the mounting fasteners and switch.
4. Disconnect electrical harness connector.

INSTALLATION

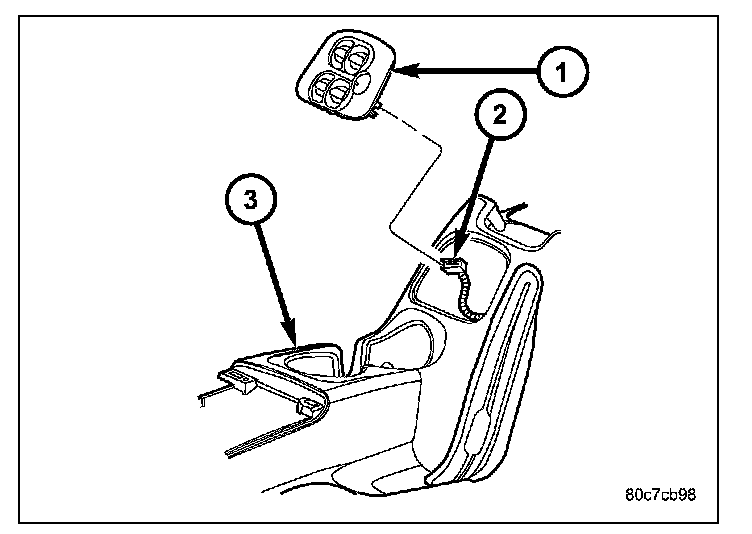

1. Connect electrical harness connector (2) to switch (1).

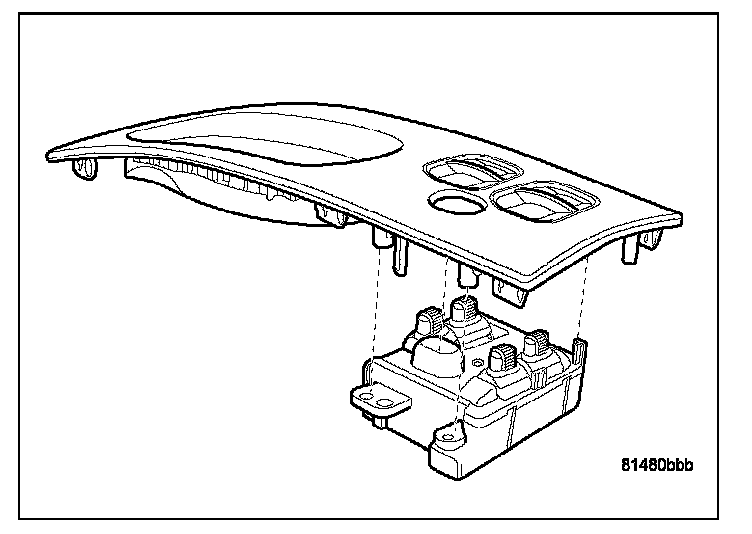

2. Install switch to shifter bezel. Install and tighten mounting fasteners.
3. Install shifter bezel.
4. Connect battery negative cable
