System Specifications

SPECIFICATIONS
42RLE AUTOMATIC TRANSMISSION

GENERAL SPECIFICATIONS:




GEAR RATIOS:




BEARING PRELOAD (Drag Torque):




CLUTCH PACK:




INPUT SHAFT:




OIL PUMP CLEARANCES:

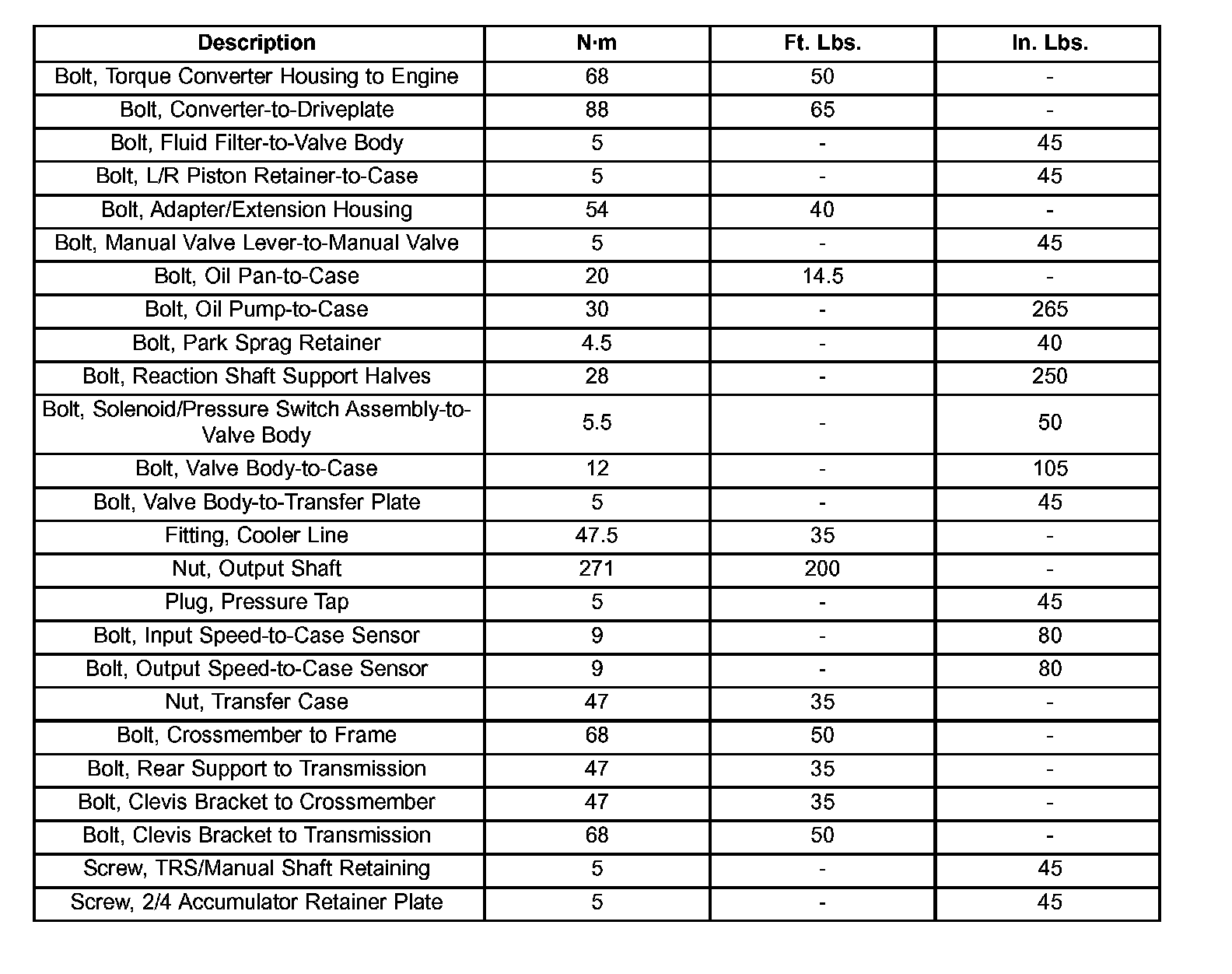

TORQUE SPECIFICATIONS:
