LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
2006
>>
Liberty 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
Body Control Module

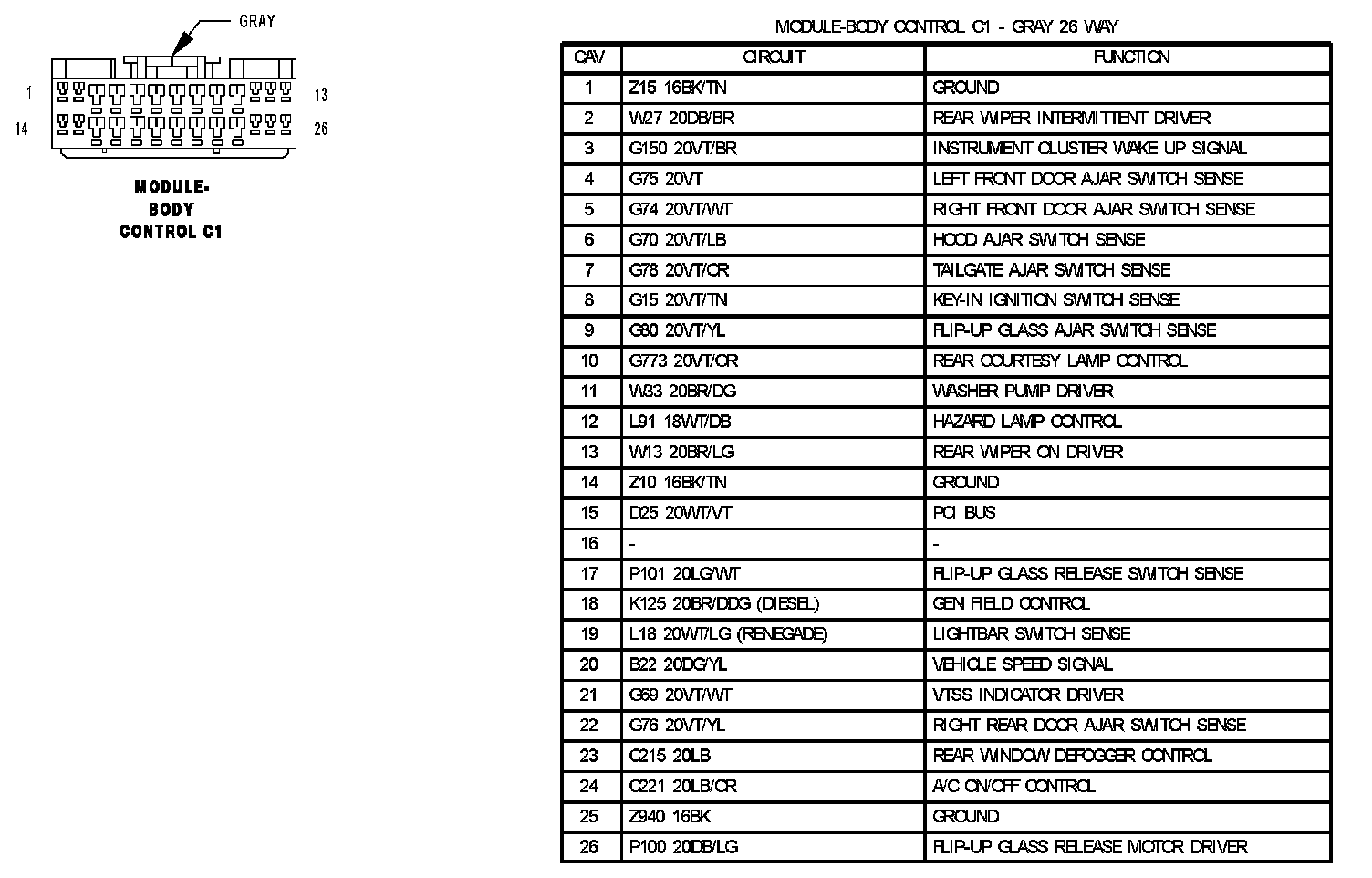

Module - Body Control C1:

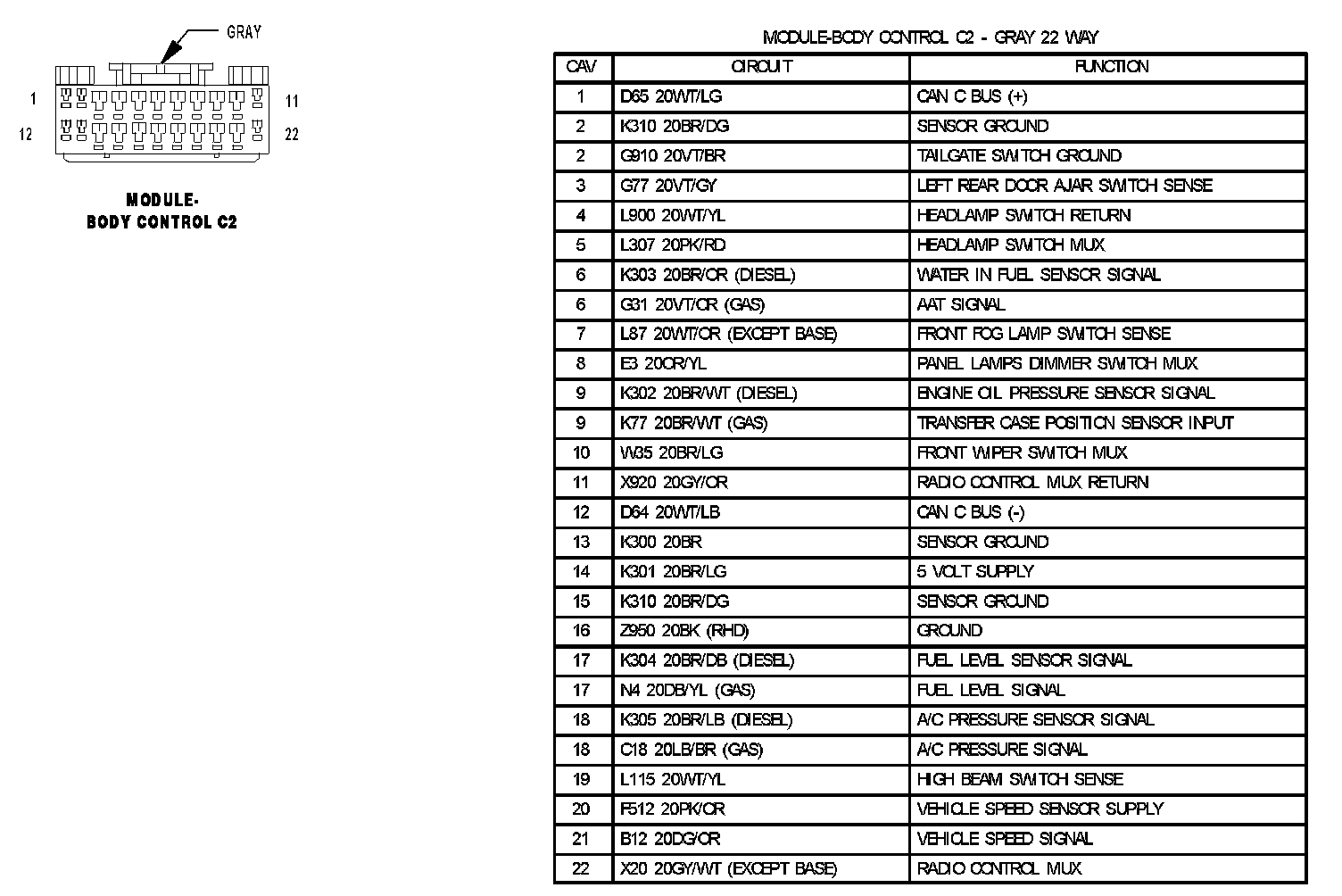

Module - Body Control C2:
