Home >> Jeep >> 2006 >> Liberty 2WD V6-3.7L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

Module - Occupant Restraint Controller C1 (ORC):

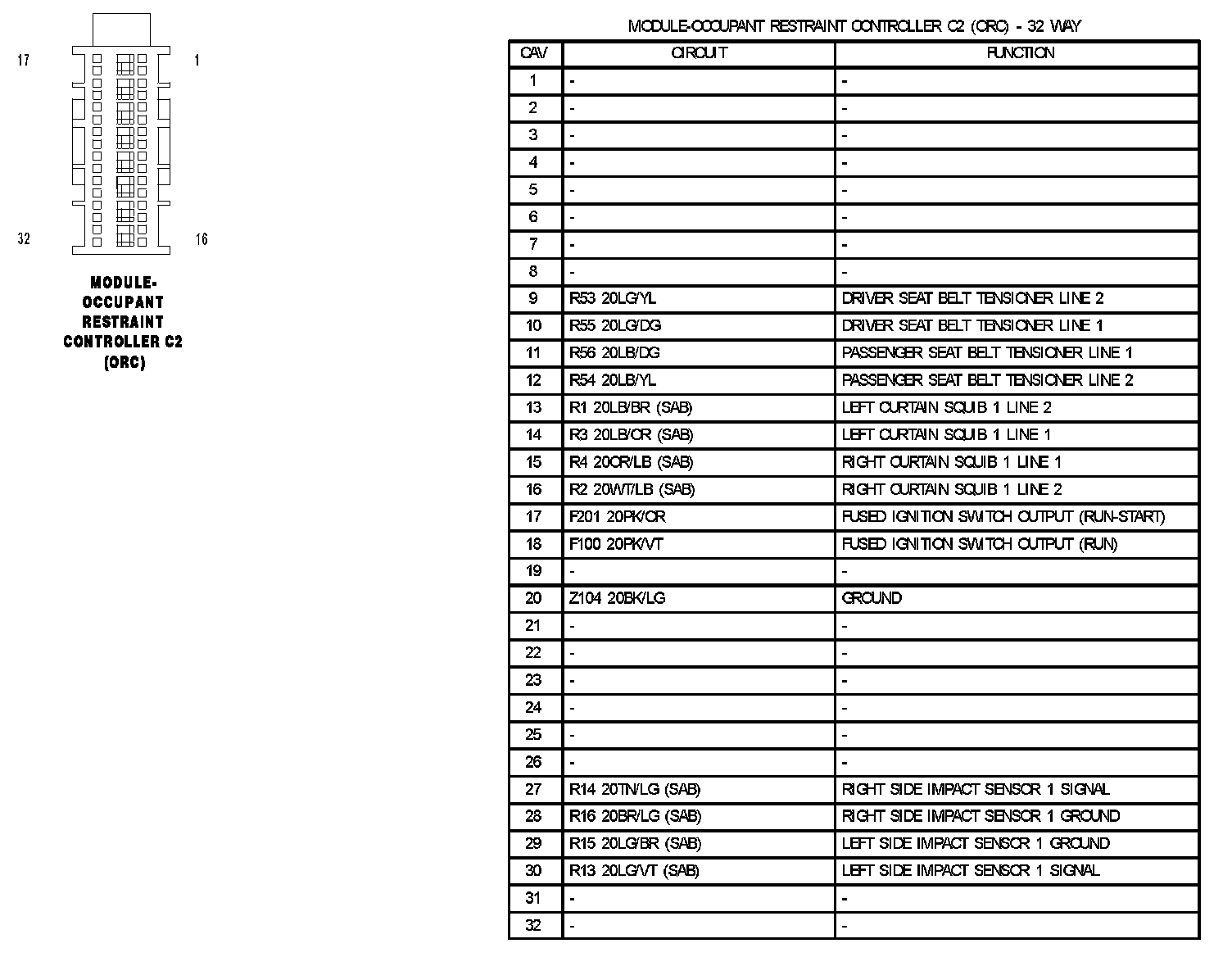

Module - Occupant Restraint Controller C2 (ORC):
