Power Mirrors (Service Information): Switch-Mirror: Description

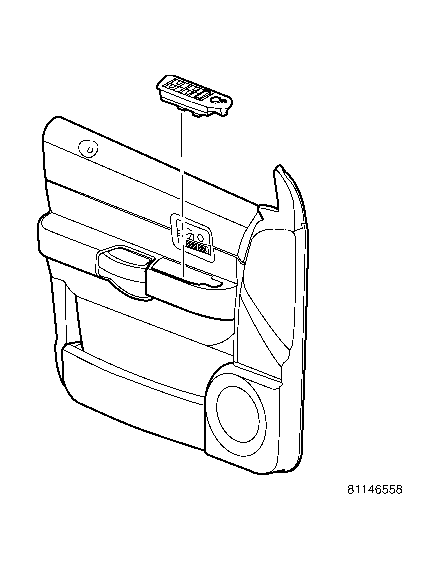

Fig 1: LOCATING - POWER MIRROR/ WINDOW/ DOOR LOCK (MASTER SWITCH)

Courtesy of DAIMLERCHRYSLER CORP.

A power mirror switch is located on the driver's door trim panel, attached to the window/lock switch. The power mirror switch includes the following:

• Power Mirror Selector Switch -  A three-position rotary joystick switch selects the right or left power mirror for adjustment, or turns the power mirror system Off in the center position.
• Power Mirror Adjustment Switch -  A momentary joystick directional switch allows the driver to adjust the selected power mirror in the Up, Down, Right or Left directions.
