Home >> Jeep >> 2006 >> Commander 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 25

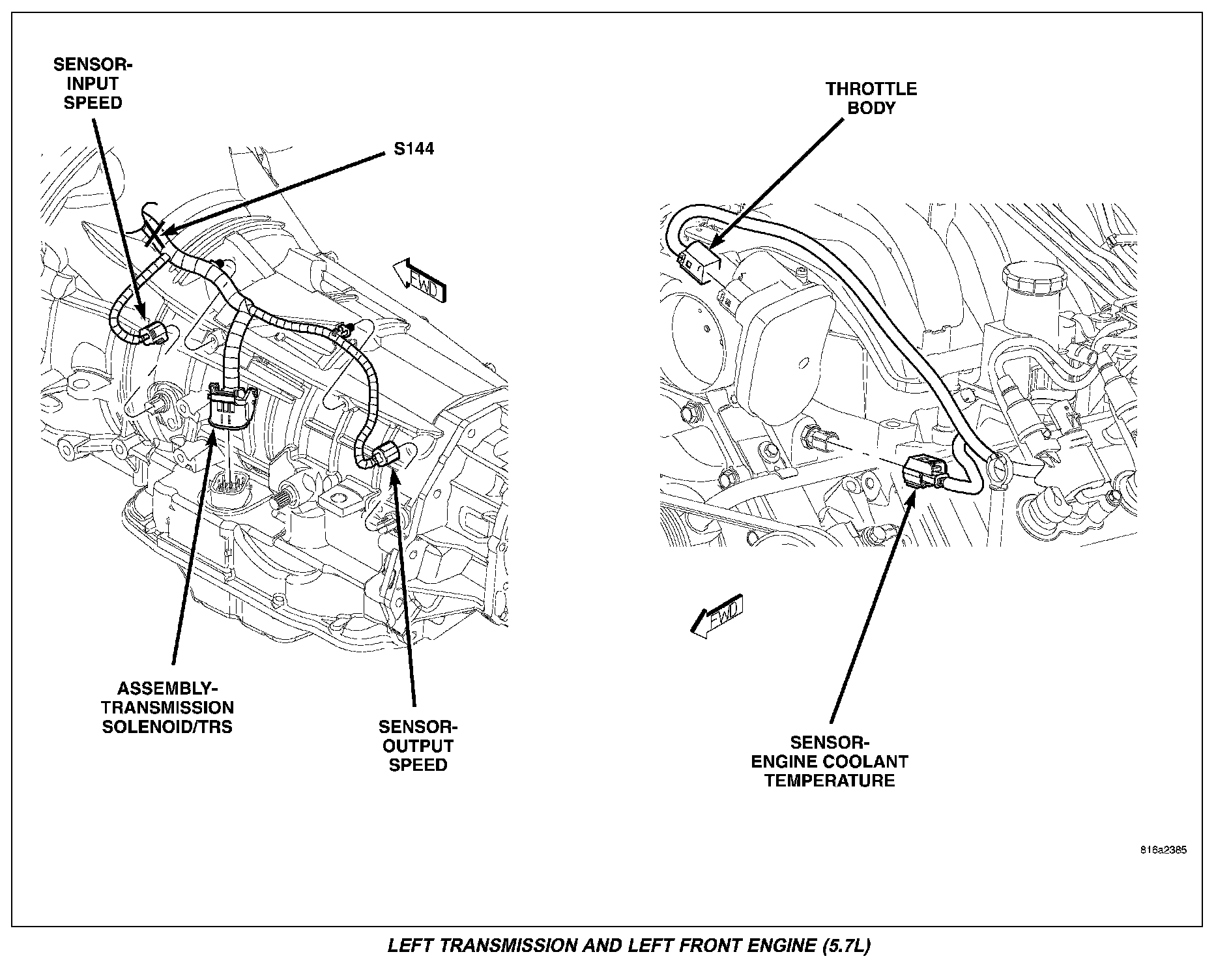

Figure 25

Left Transmission And Left Front Engine (5.7L):
