System Diagram

Mirror Inside Rearview C1:



Mirror Inside Rearview C2 (Hands Free):

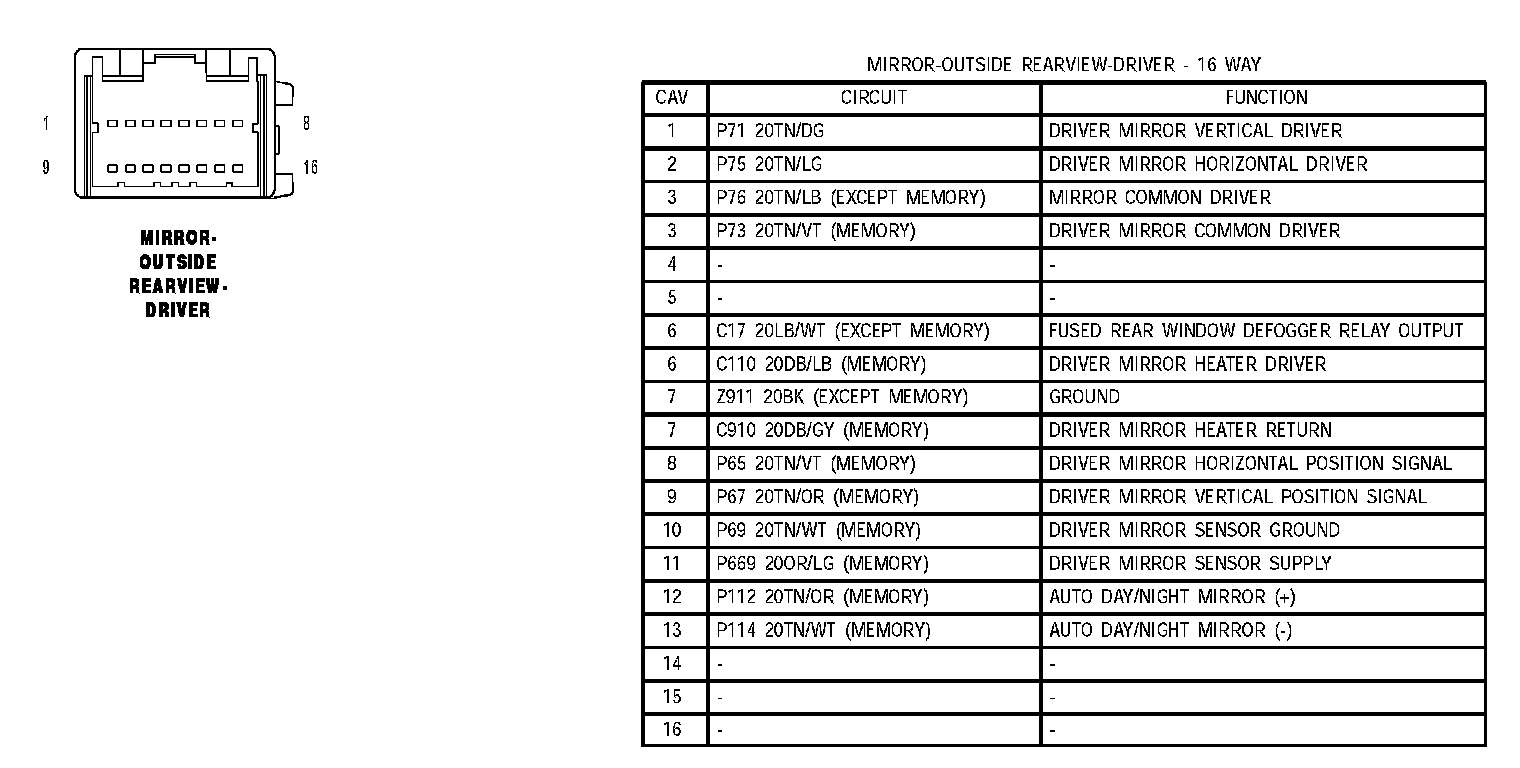

Mirror Outside Rearview Driver:

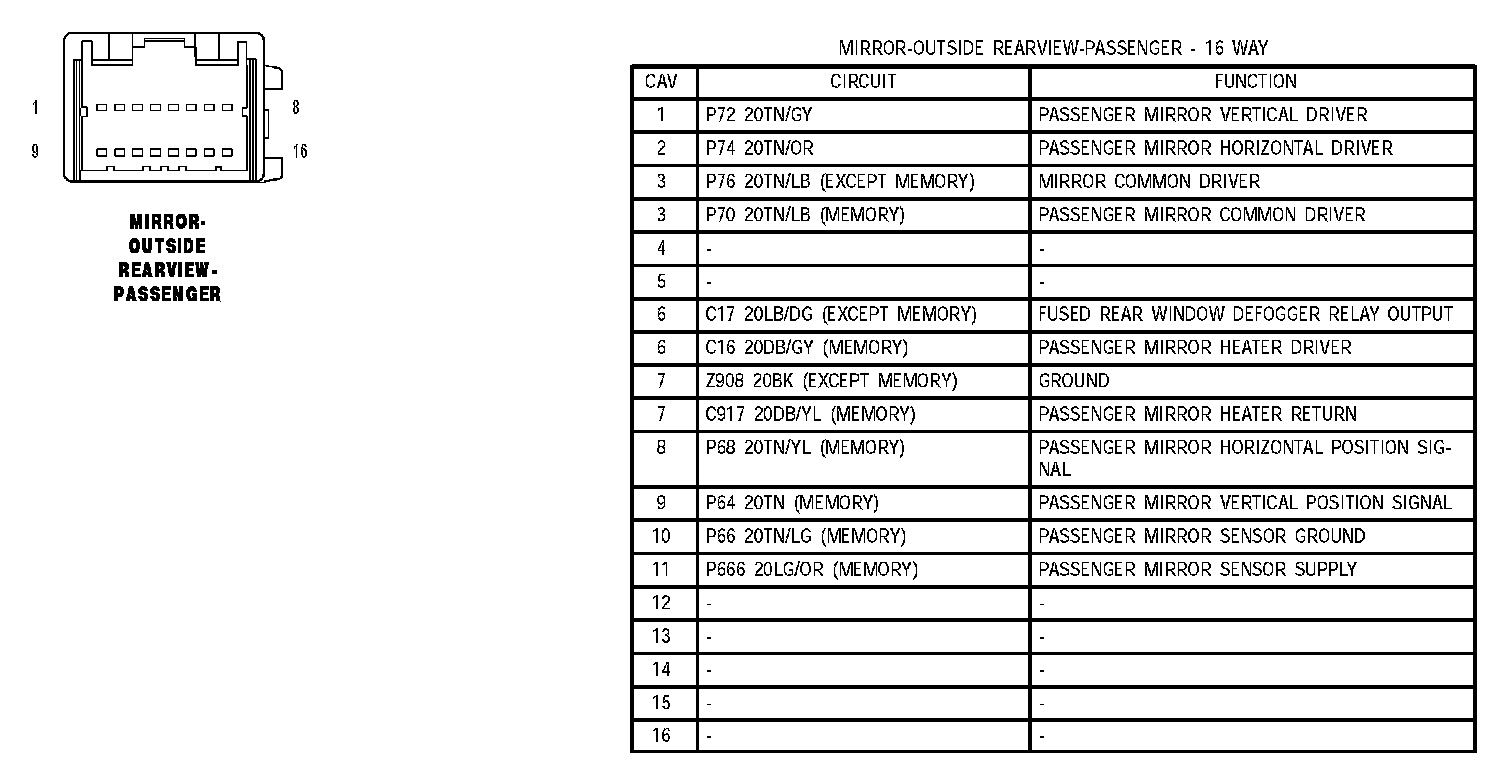

Mirror Outside Rearview Passenger:
