Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

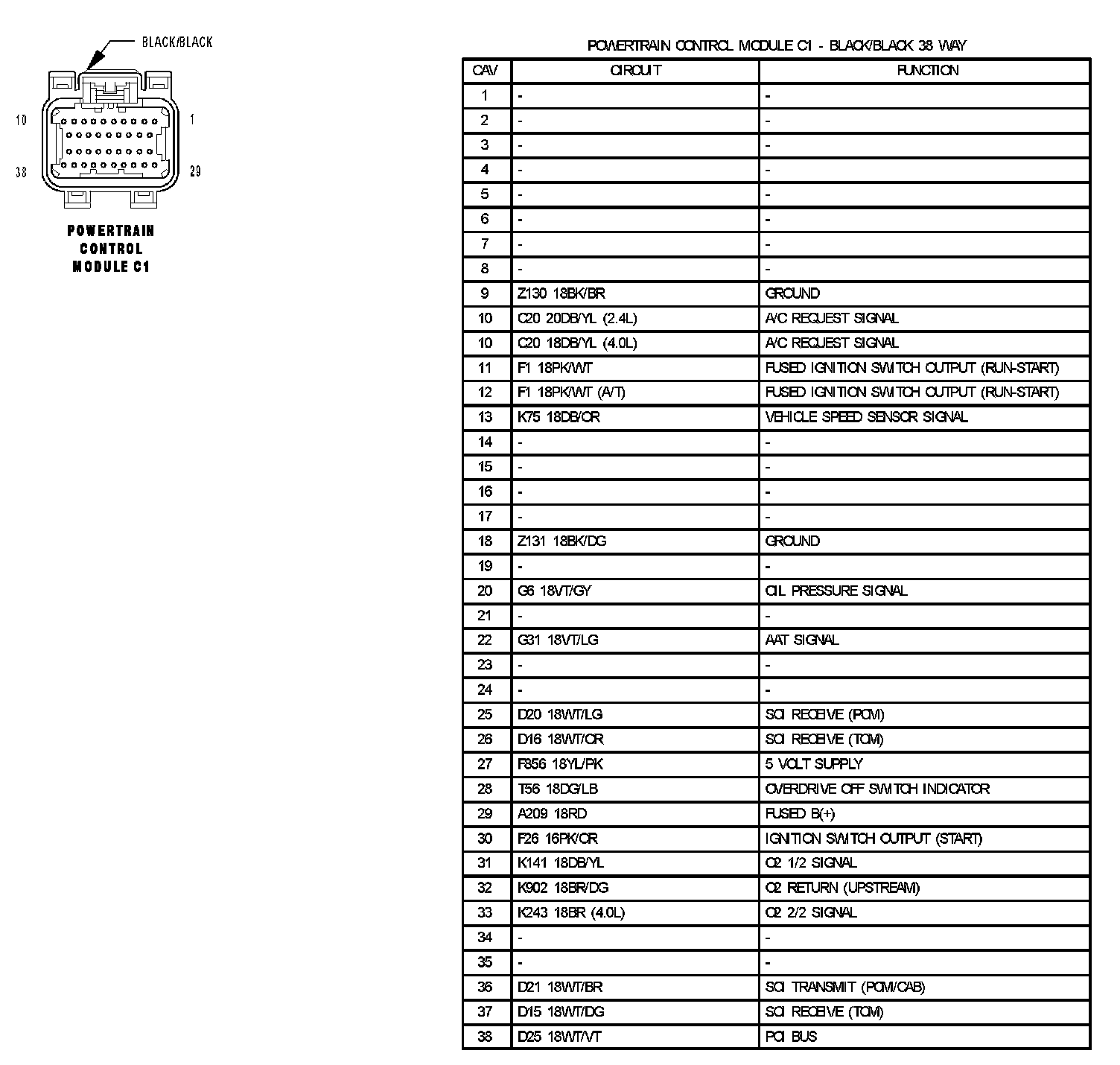

Powertrain Control Module C1:

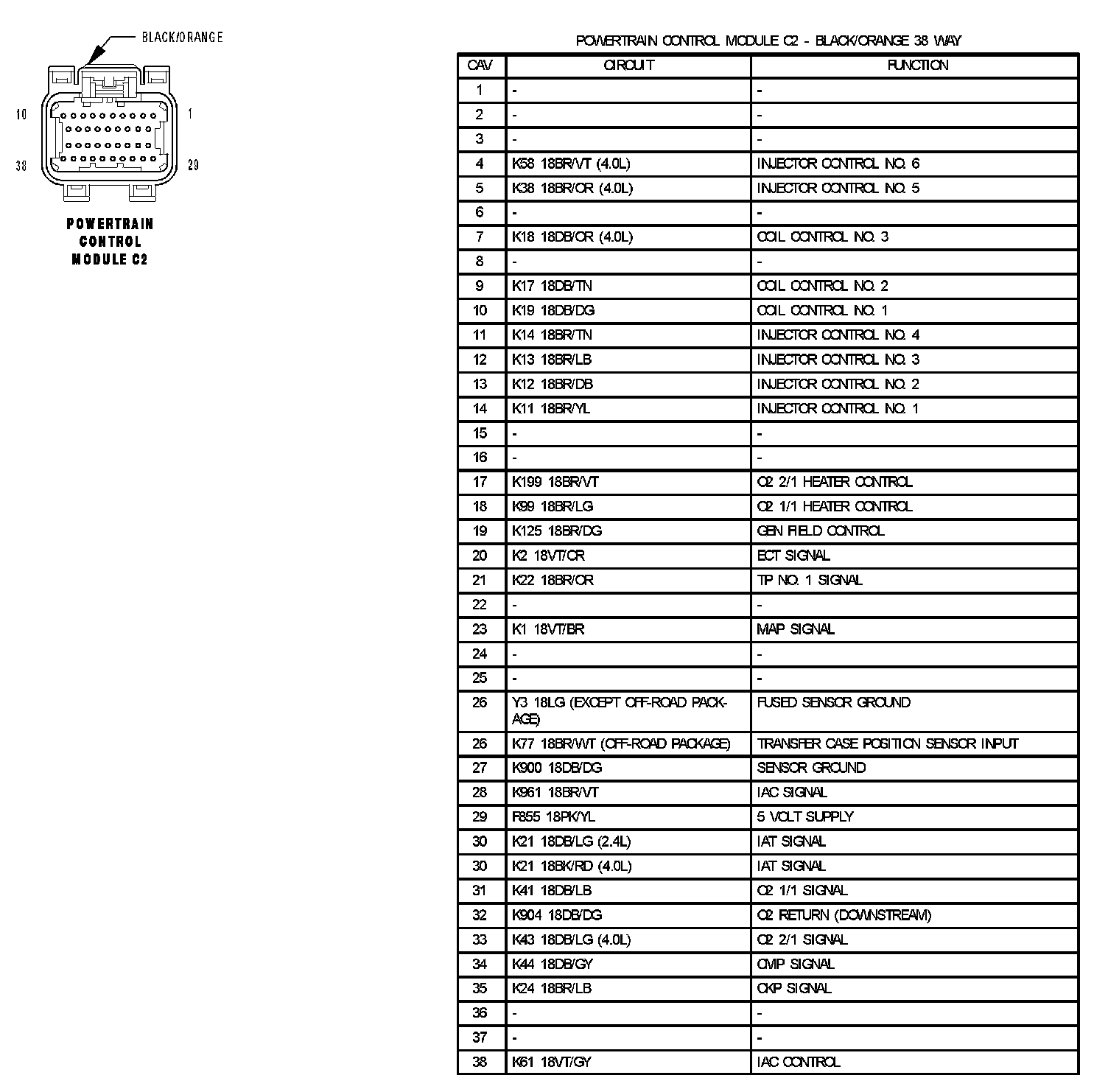

Powertrain Control Module C2:

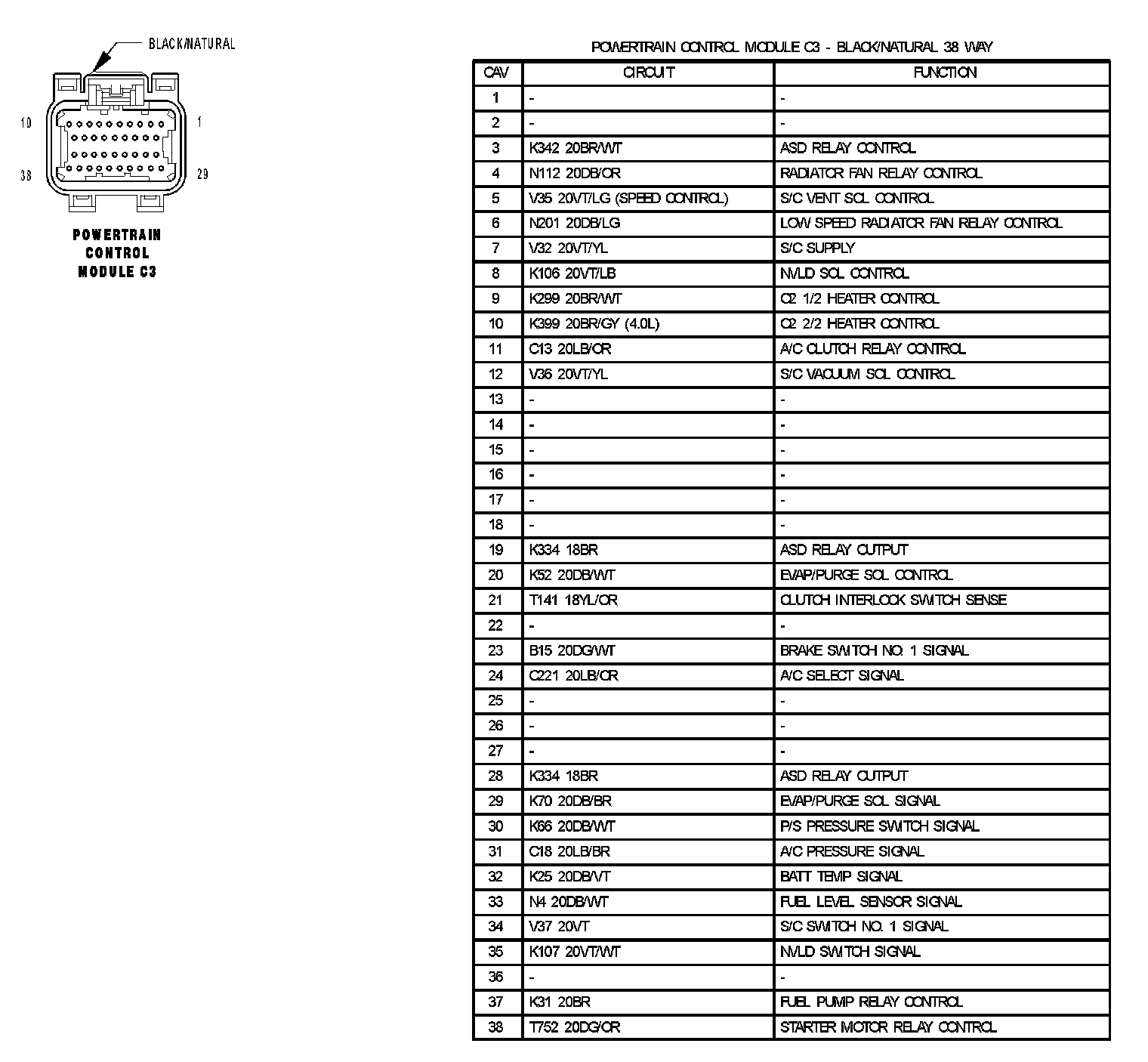

Powertrain Control Module C3:

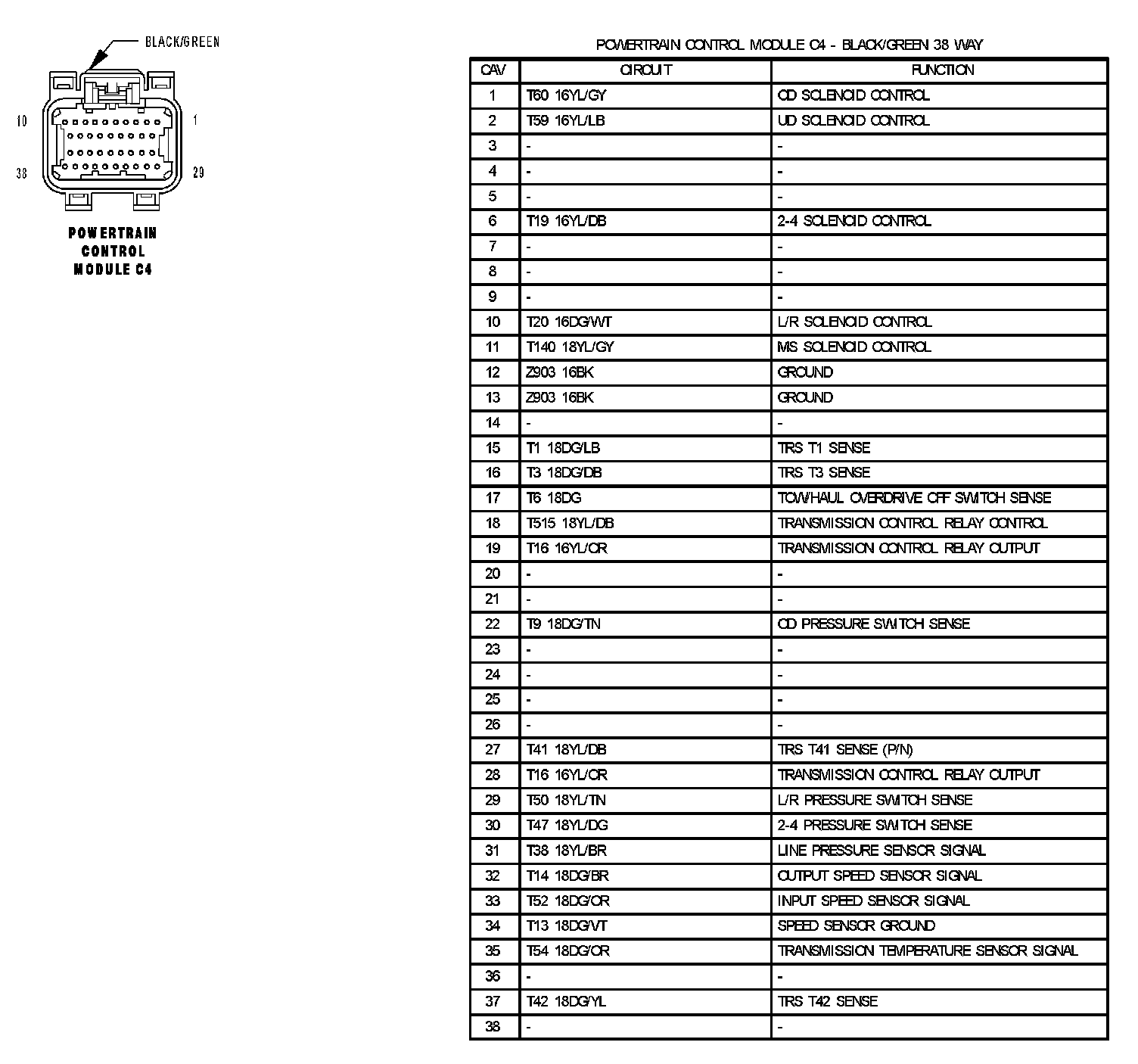

Powertrain Control Module C4:
