Air Bag System
Air Bag System

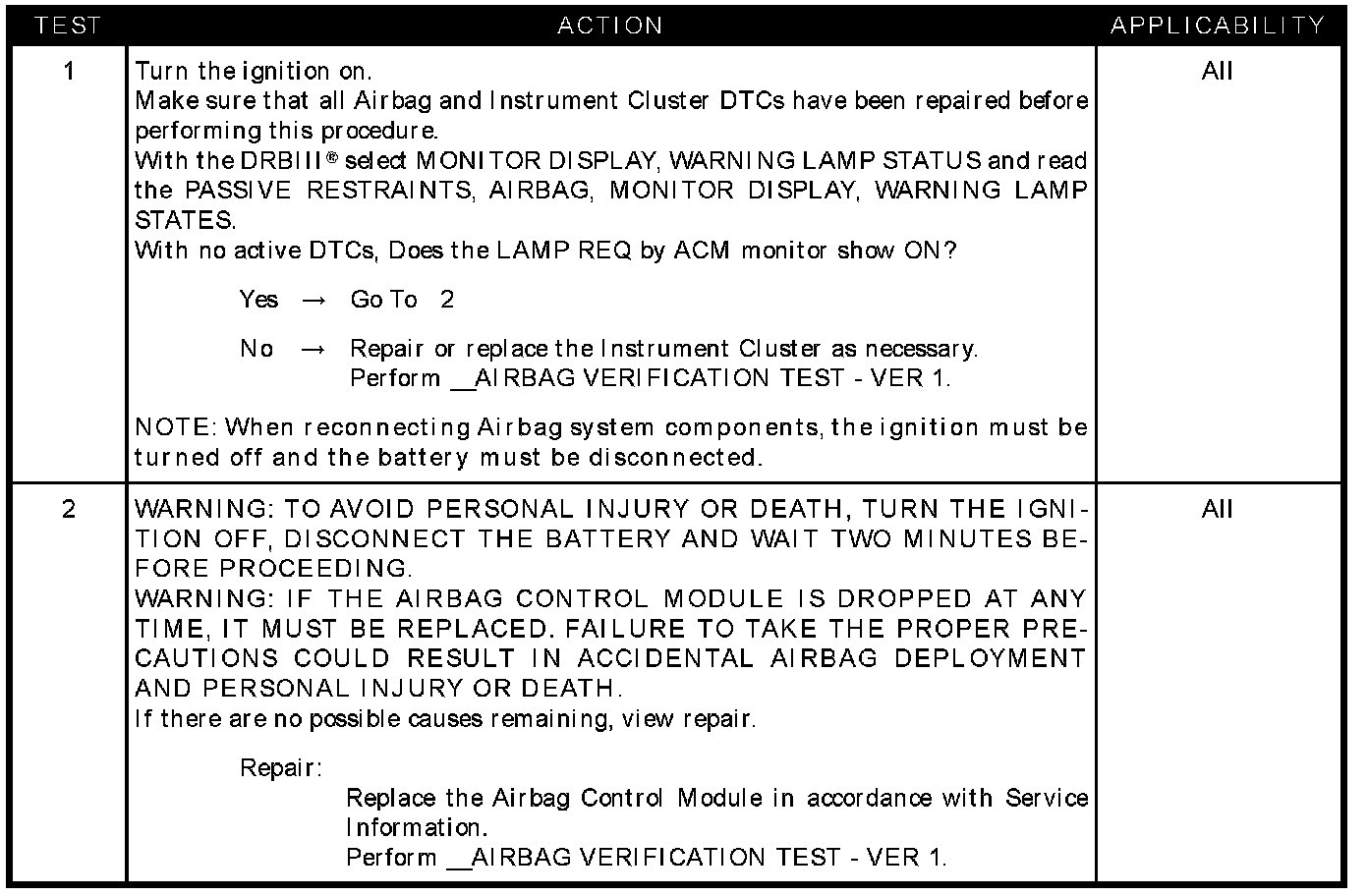

Test 1 - 2:
SYMPTOM
AIRBAG INDICATOR ON WITHOUT ACTIVE TROUBLE CODES
POSSIBLE CAUSES
-
Airbag warning indicator on without trouble codes
-
ACM, airbag indicator on without trouble codes
