Home >> Jeep >> 2005 >> Liberty 2WD L4-2.4L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control System Relay, A/T

Transmission Control System Relay, A/T

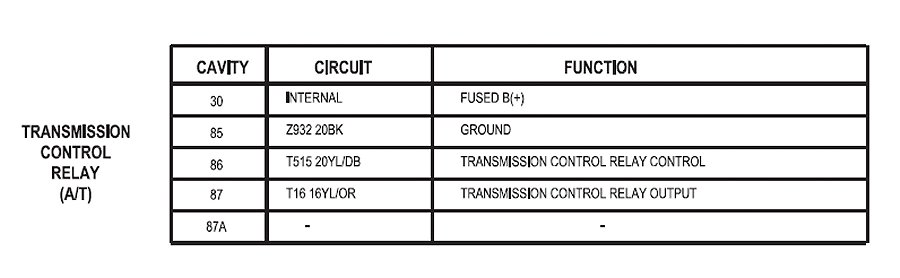

Transmission Control Relay (A/T):
