Home >> Jeep >> 2005 >> Liberty 2WD L4-2.4L VIN 1 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Central Control Module >> Locations

Central Control Module: Locations

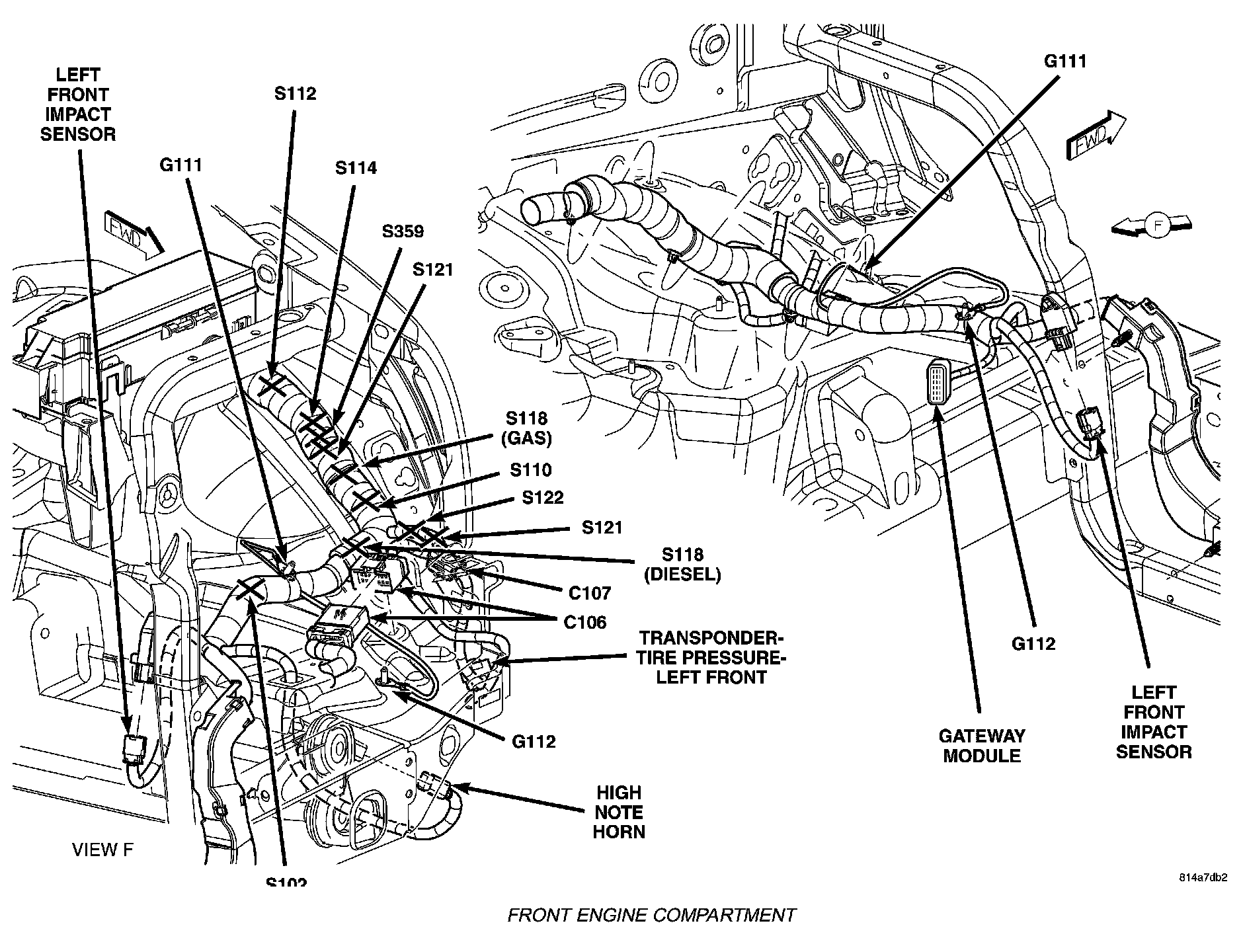

Front Engine Compartment:
