Home >> Jeep >> 2004 >> Wrangler L4-2.4L VIN 1 >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Clutch Switch >> Locations

Clutch Switch: Locations

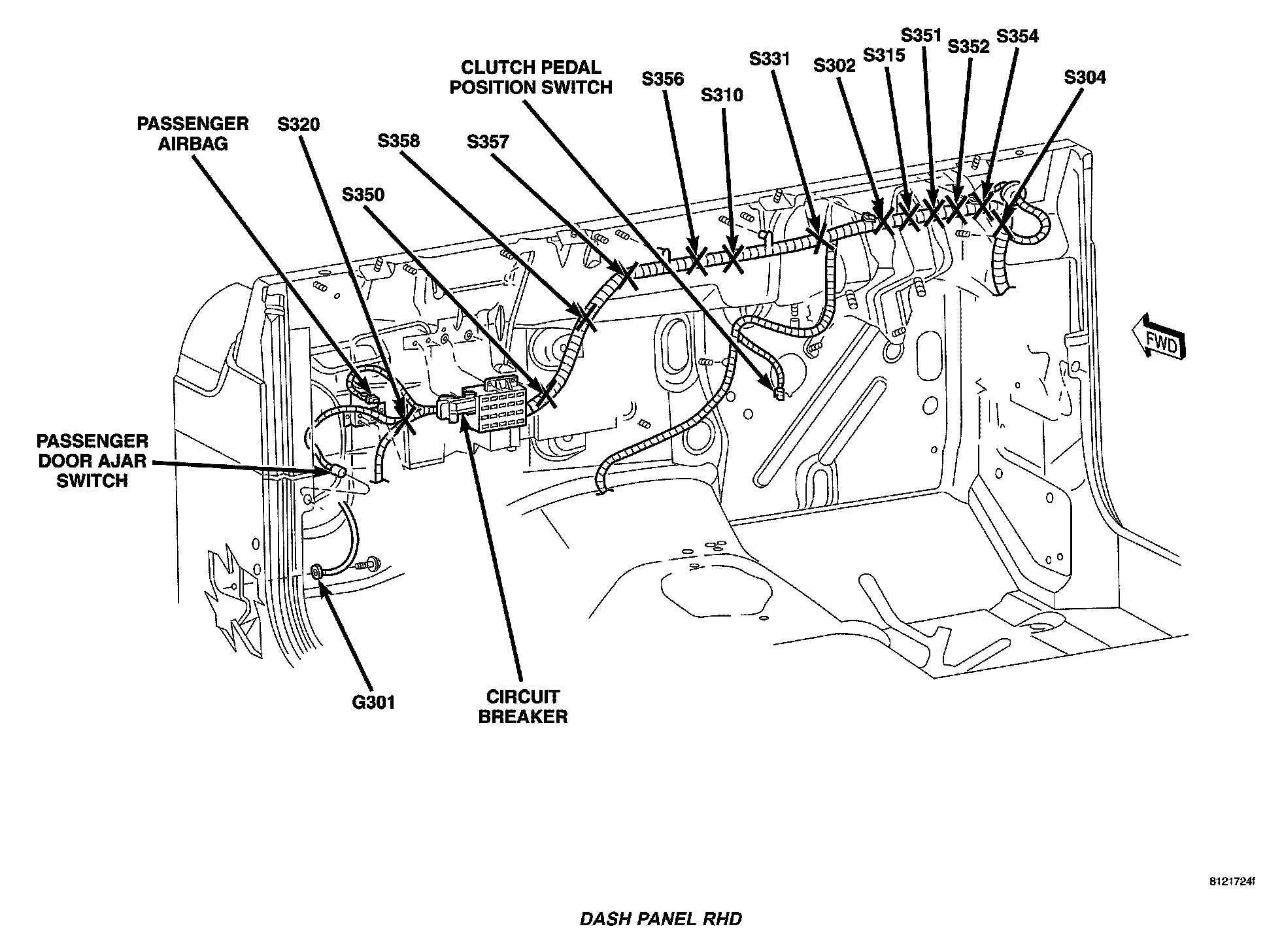

Dash Panel RHD:

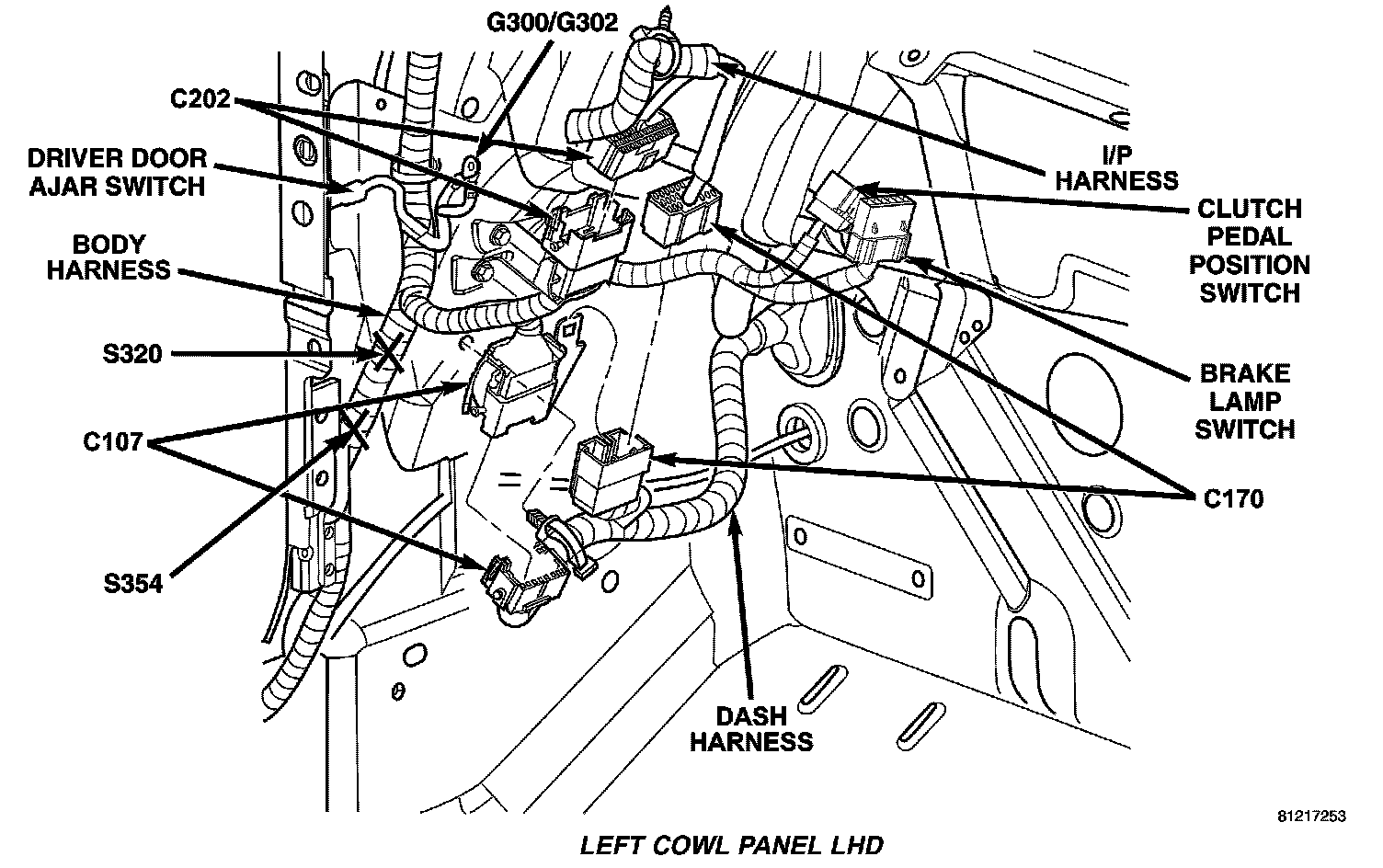

Left Cowl Panel LHD:
