Jeep
>>
2004
>>
Liberty 4WD L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
Power Window Motor

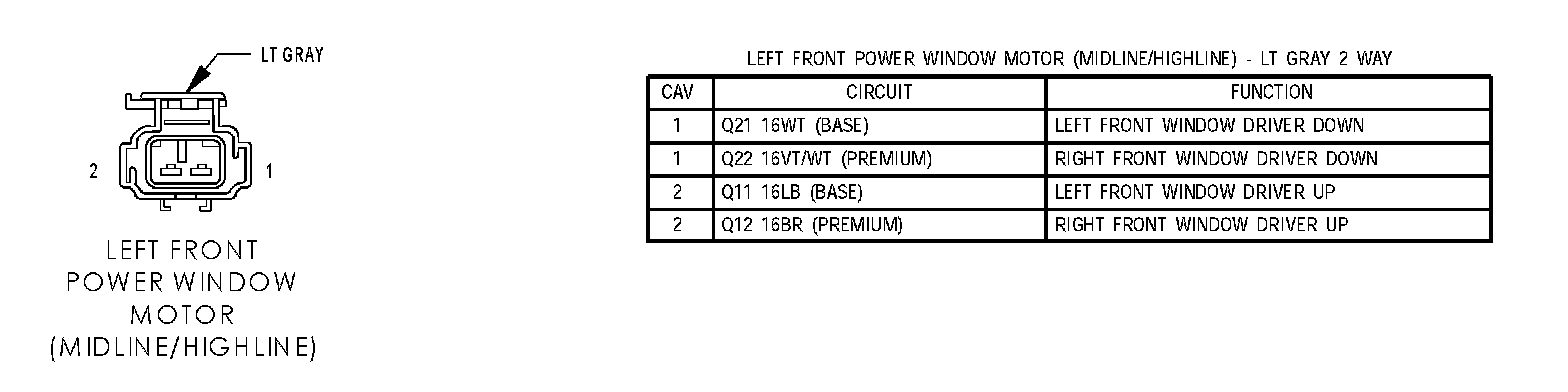

Left Front Power Window Motor (Midline/Highline):

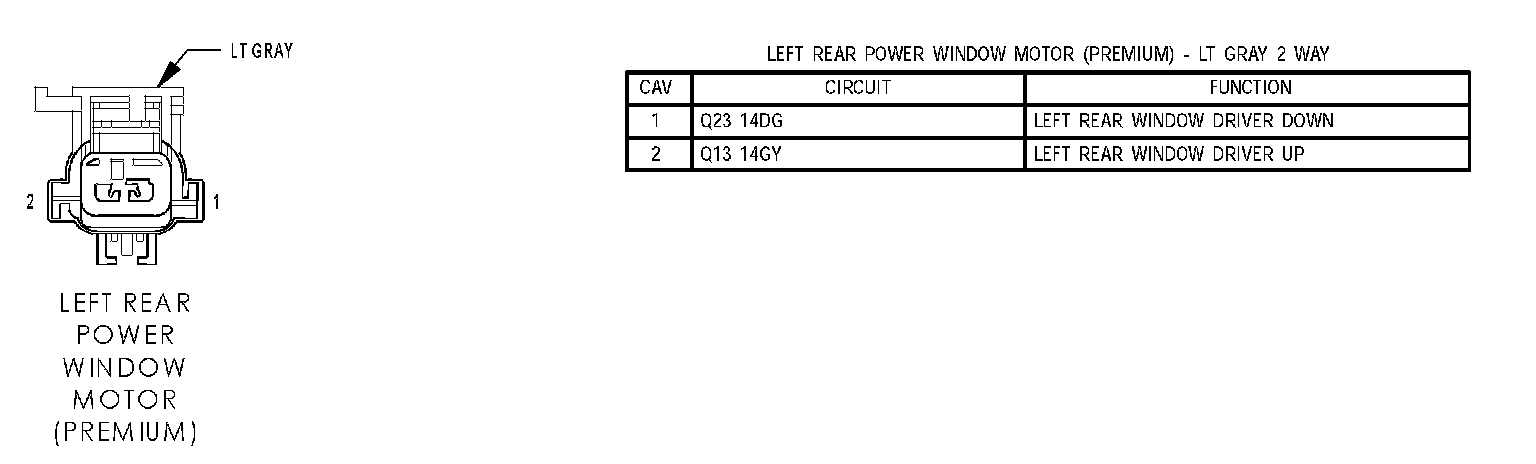

Left Rear Power Window Motor (Premium):

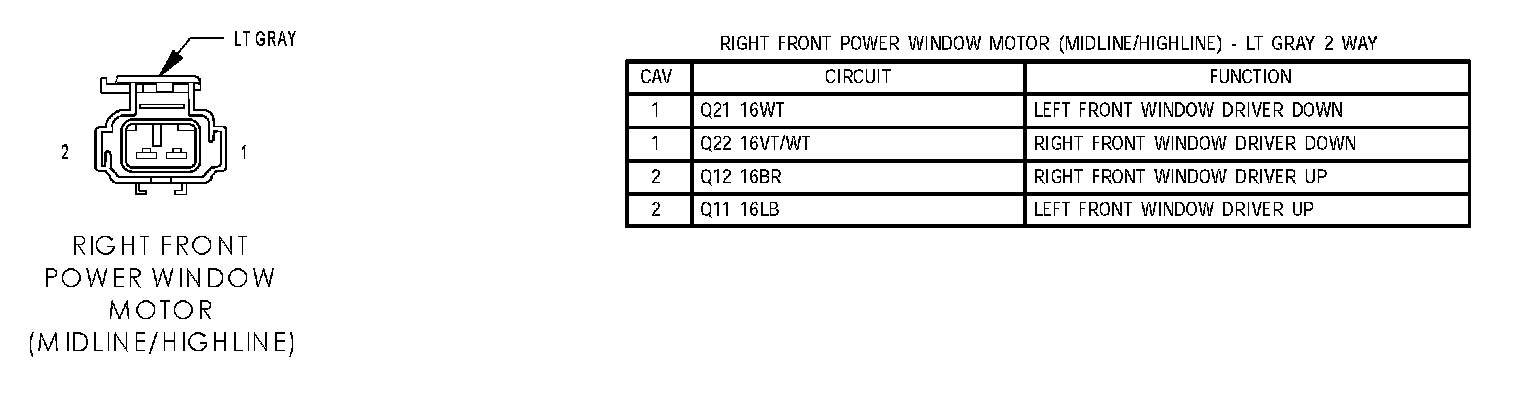

Right Front Power Window Motor (Midline/Highline):

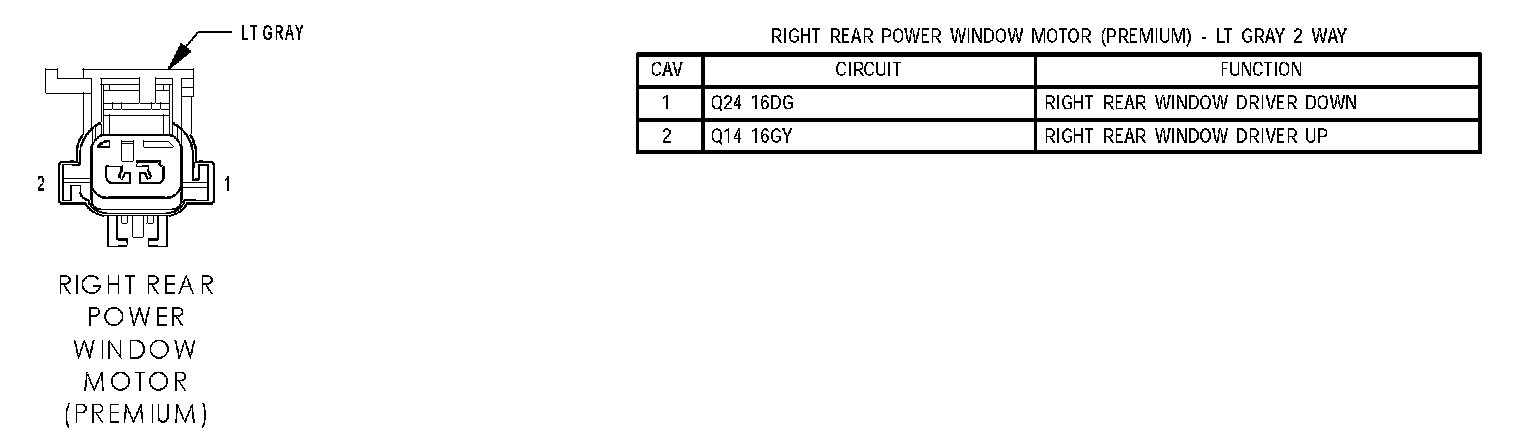

Right Rear Power Window Motor (Premium):
