Battery Temperature Sensor: Testing and Inspection

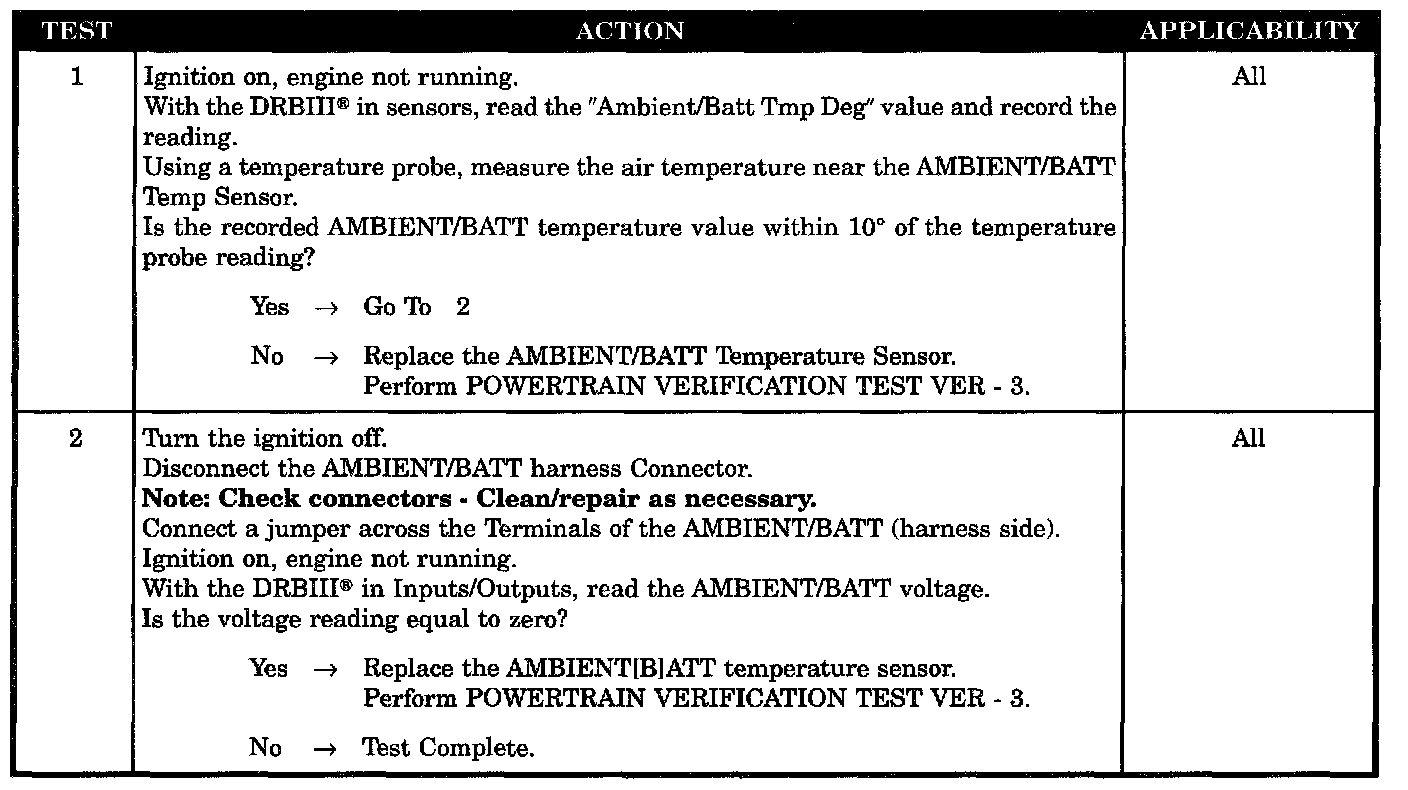

Tests 1 - 2:




SYMPTOM
CHECKING THE AMBIENT/BATTERY TEMPERATURE SENSOR

POSSIBLE CAUSES
- Ambient/batt (out of calibration)
- Ambient/batt temperature sensor
