Front Power Outlet Connector End View

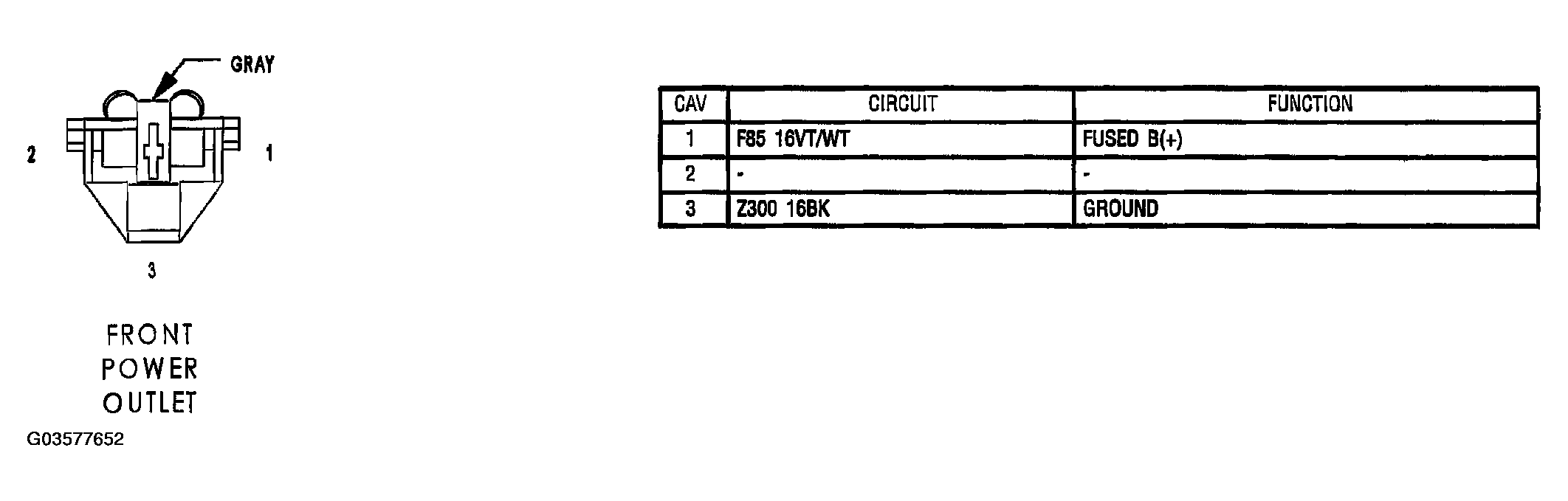

Fig 1: Front Power Outlet Connector End View

G03577652

Courtesy of DAIMLERCHRYSLER CORP.
