Fuel Pump Module Connector End View

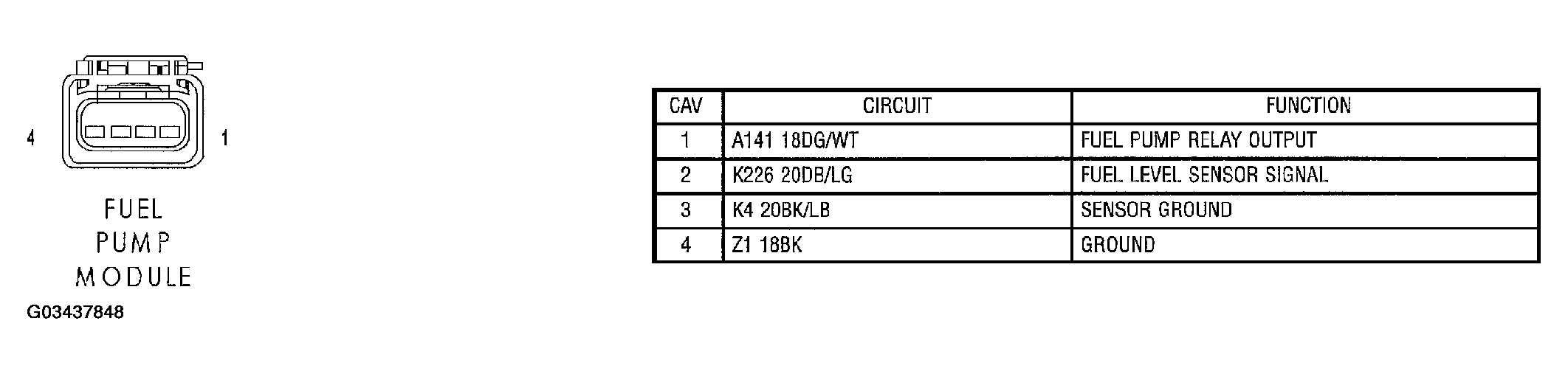

Fig 1: Fuel Pump Module Connector End View

G03437848

Courtesy of DAIMLERCHRYSLER CORP.
