Home >> Jeep >> 2003 >> Wrangler L4-2.4L VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch

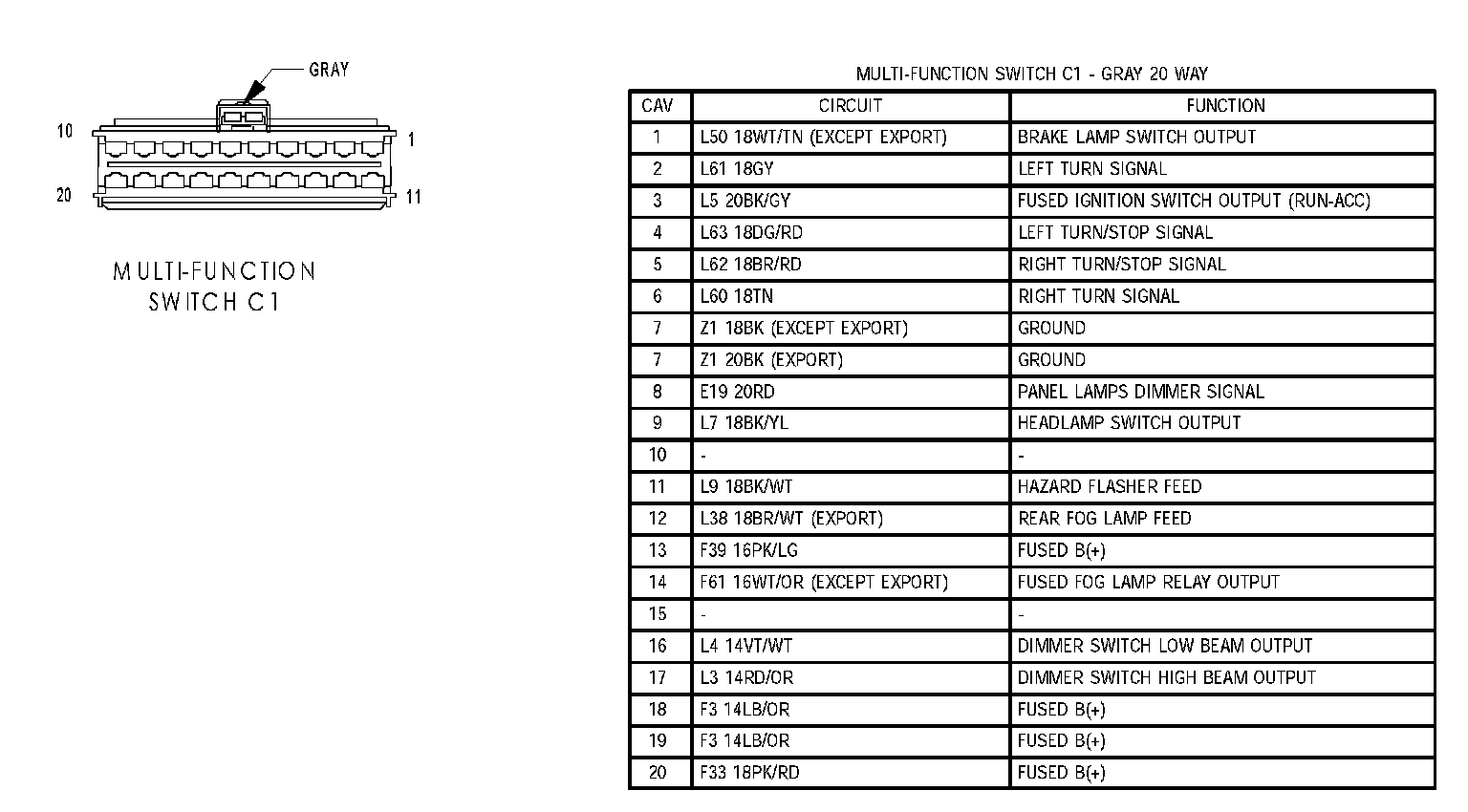

Multi-Function Switch C1:



Multi-Function Switch C2:
